XINPUGUANG off-grid 400W solar panel system kit complete camping power with 12V OR 24V To 110V 220V 1000w inverter Charger Lithium/Lead Acid battery Solar Panels System

Shipping information:
For Europe Client: Ship from Spain or Czech or German Warehouse, including VAT TAX, 3- 10days arrival via DHL or Correos.
For USA Client: Ship from USA Warehouse, including VAT TAX, 5-15 days arrival via FEDEX.
For Russia: Ship from Moscow Warehouse, including VAT TAX, Fast arrival via Russia Post.
More Oversea Warehouse will open later.
For Spain Island and France Island, there may be extra remote freight cost, so if there were remote cost, then we will contact with buyer.
For USA Client: there are remote area as well, so if your area belongs to remote area, we will contact with you as well.
Features:

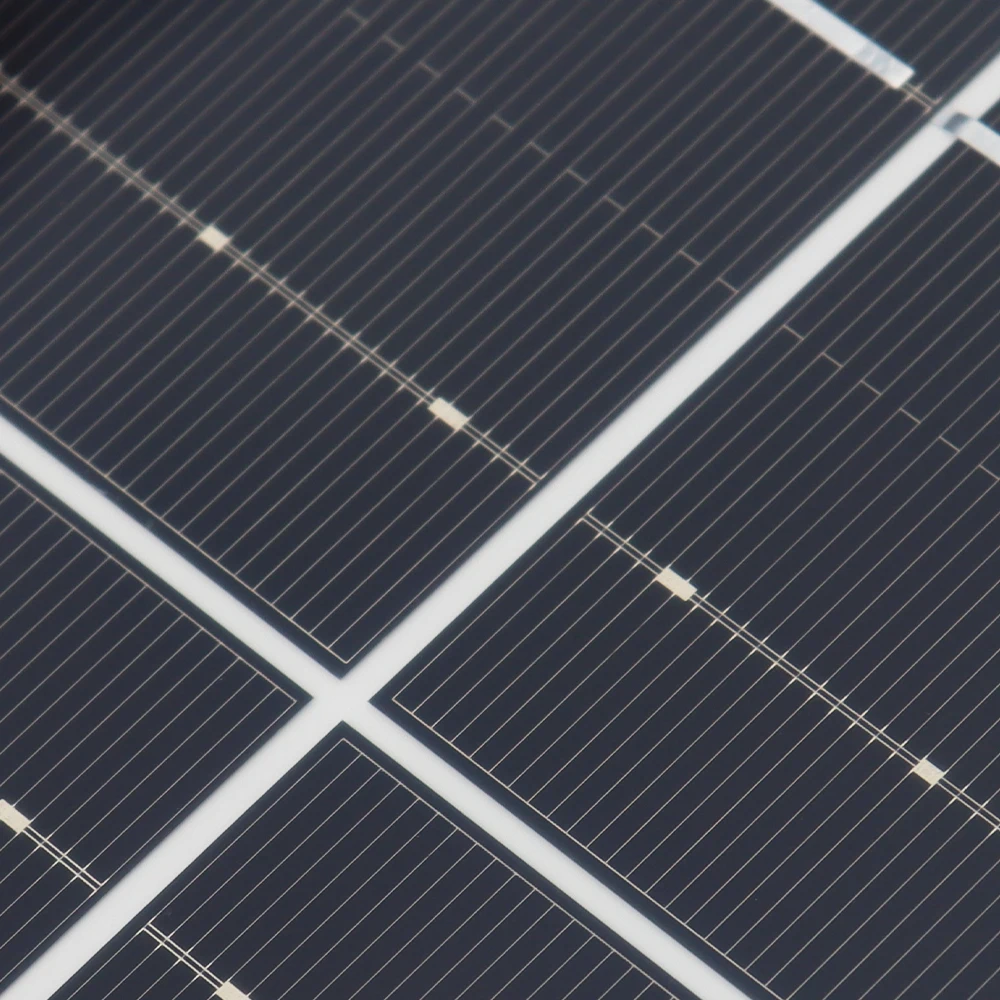

a. High efficiency: cell efficiency is about 1.2 times that of conventional polycrystalline
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

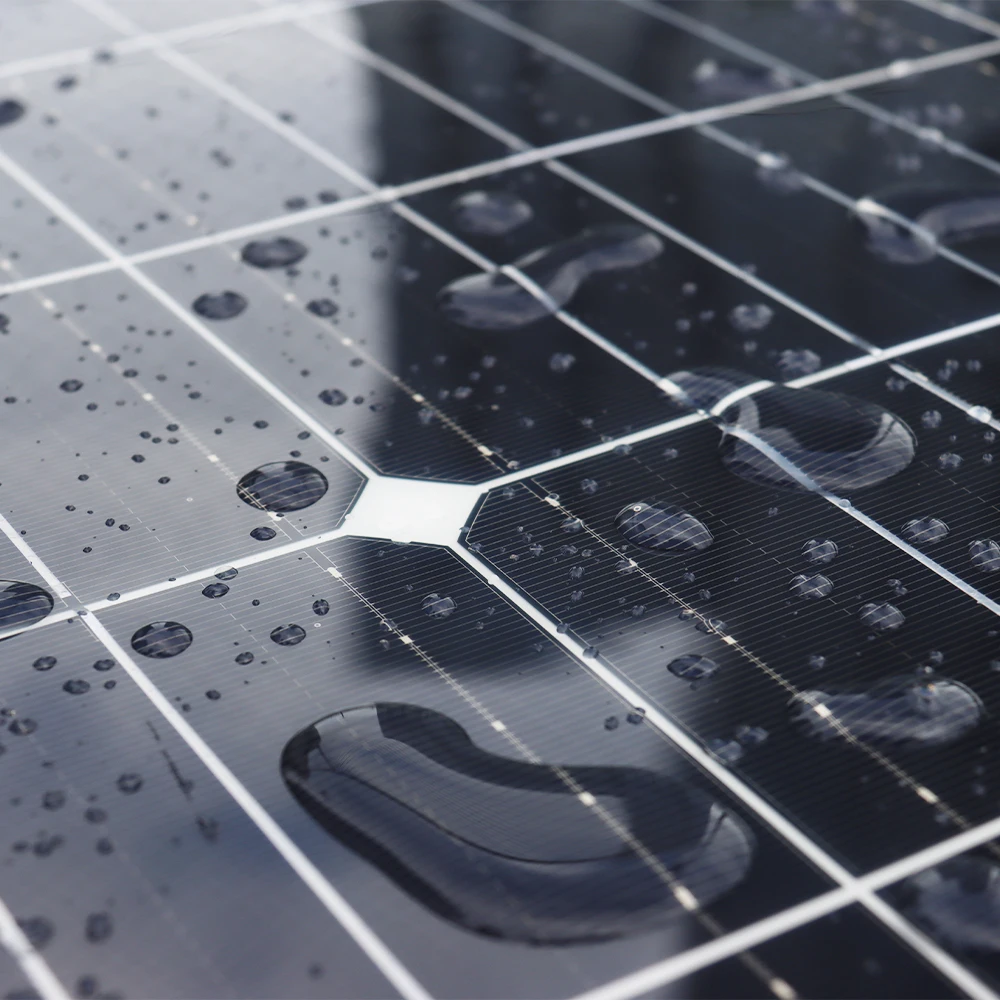

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

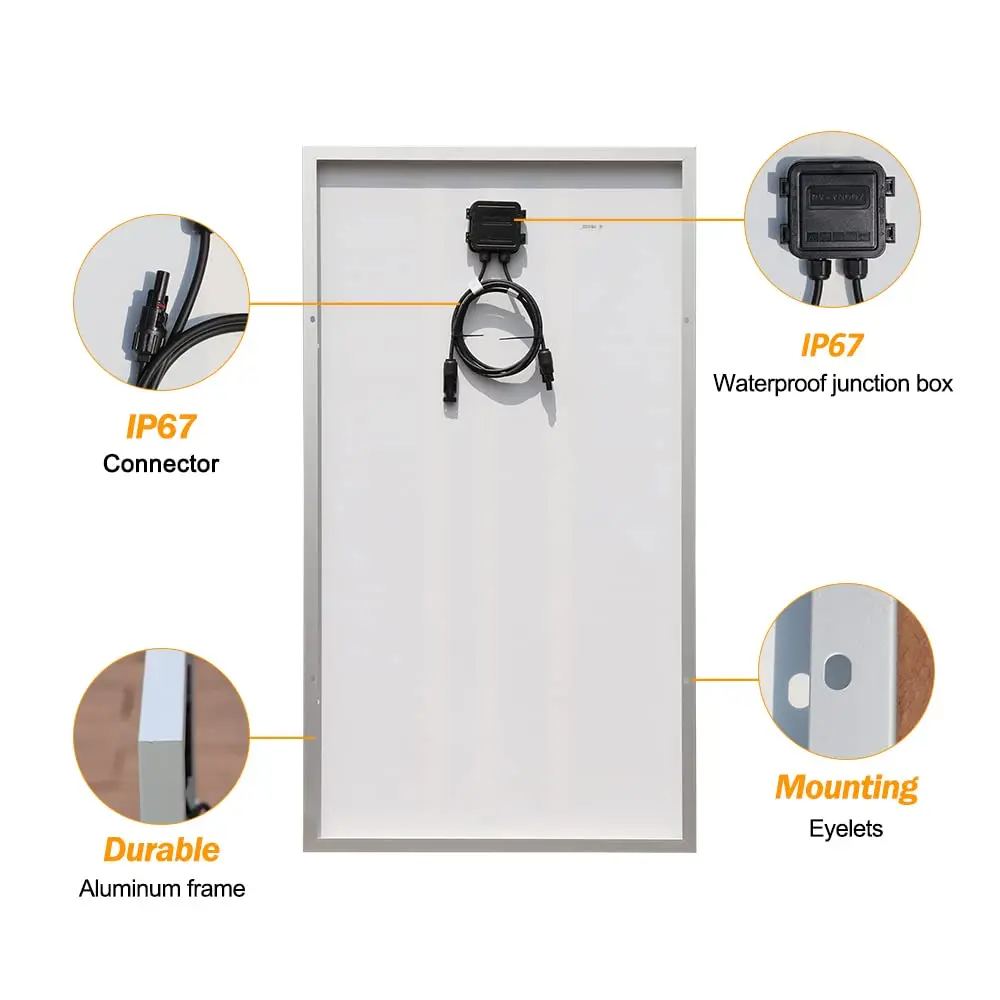

e. The junction box has an IP67 waterproof design, which includes a bypass diode, and the circuit adopts input overcurrent protection and reverse protection design.

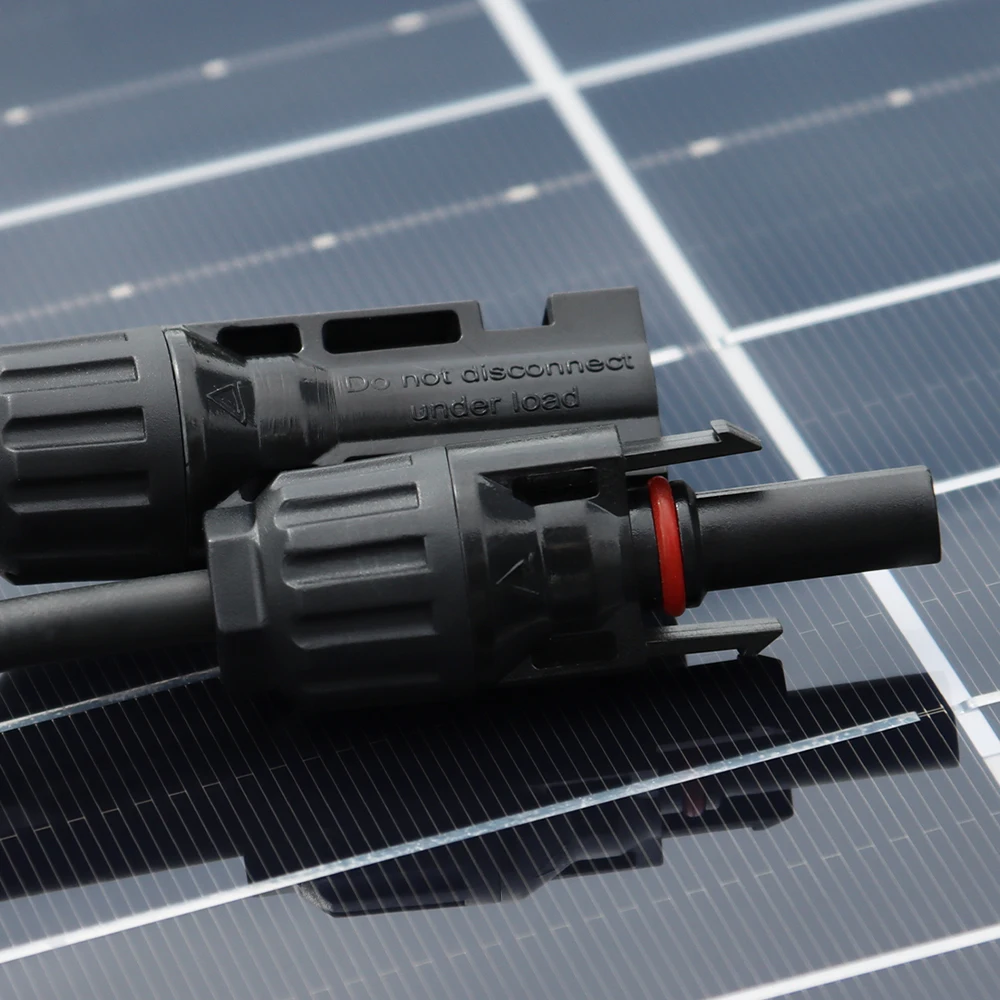

f. The PV cables for photovoltaic modules are used for outgoing cables. The outdoor use is safe, waterproof, high temperature resistance and weather resistance. pv connectors are easy to use, plug and play.

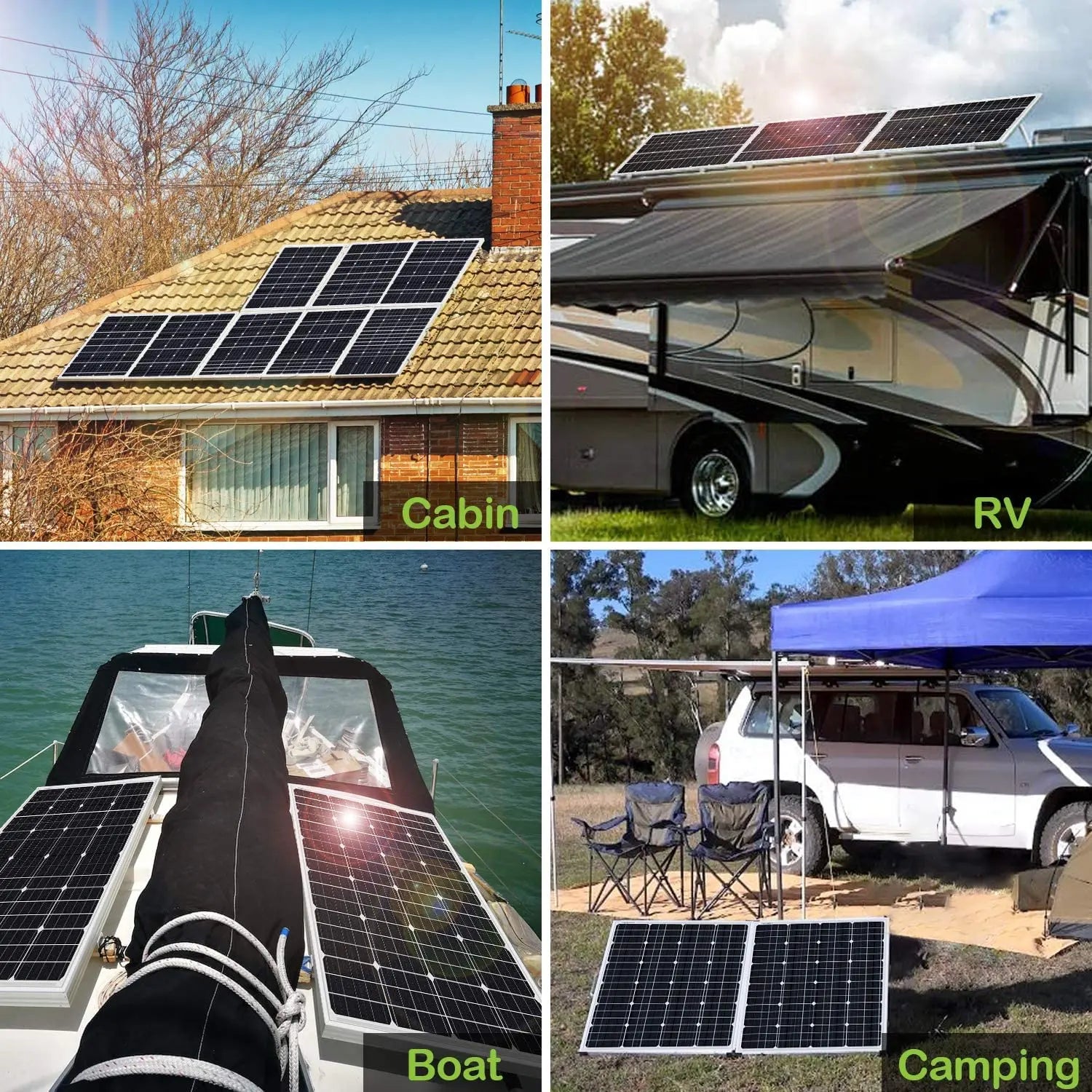

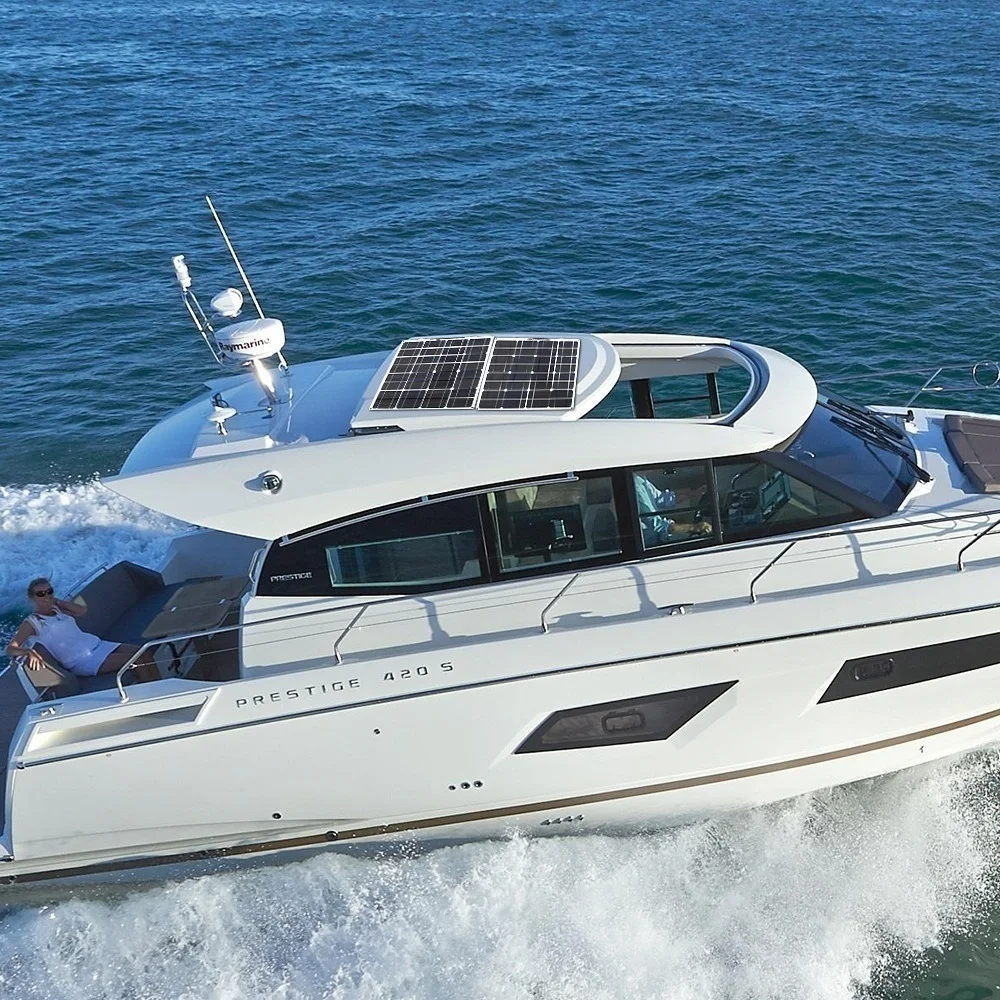

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.

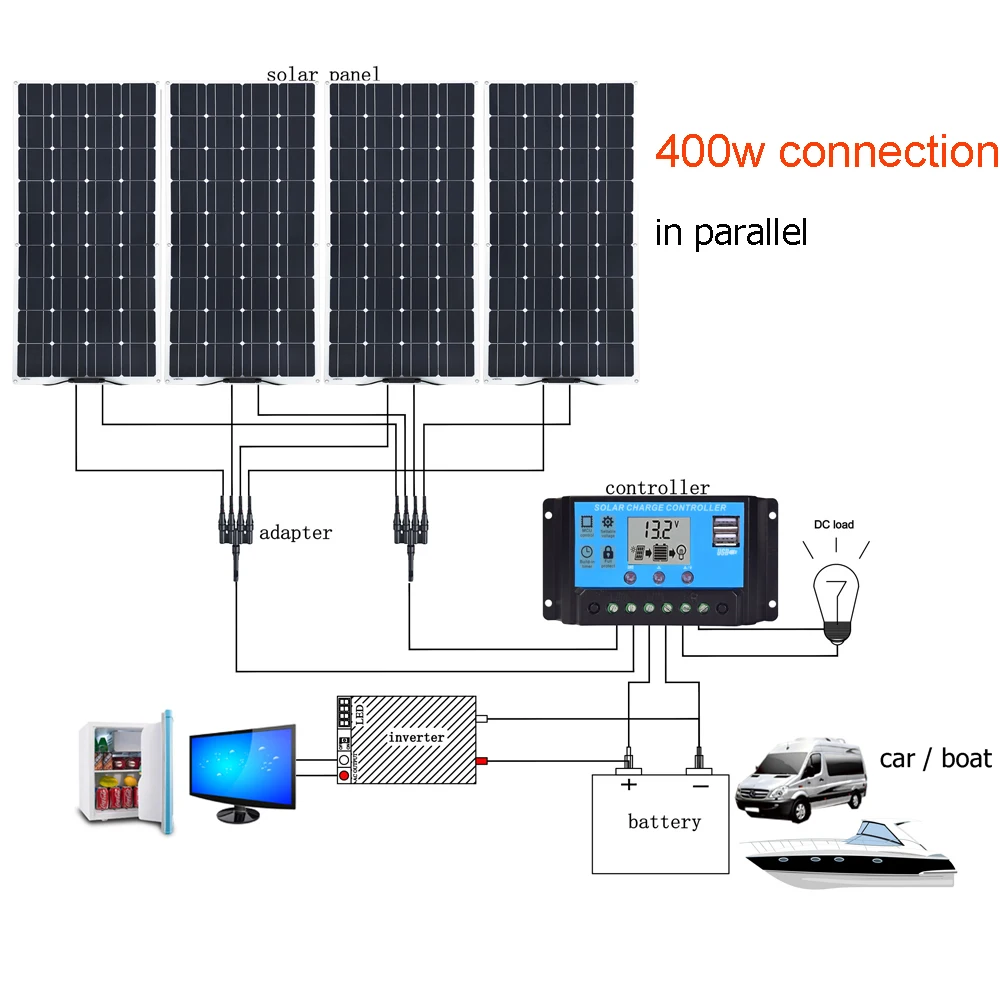

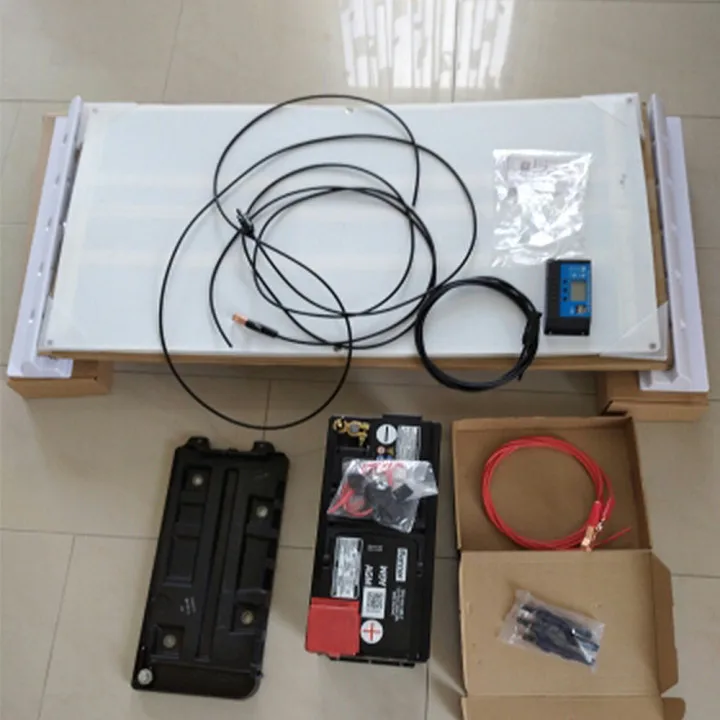

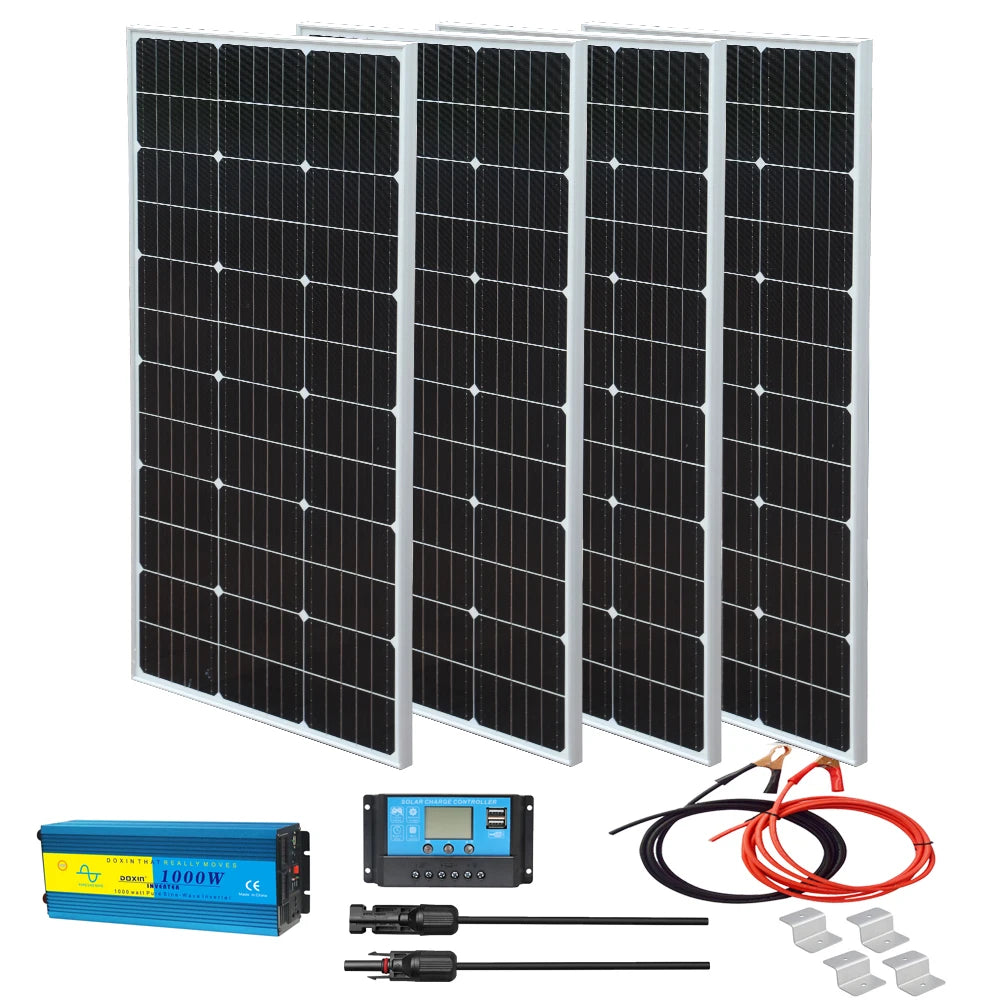

12V 110V 400W solar system*Package list:

4 * 100w solar panel

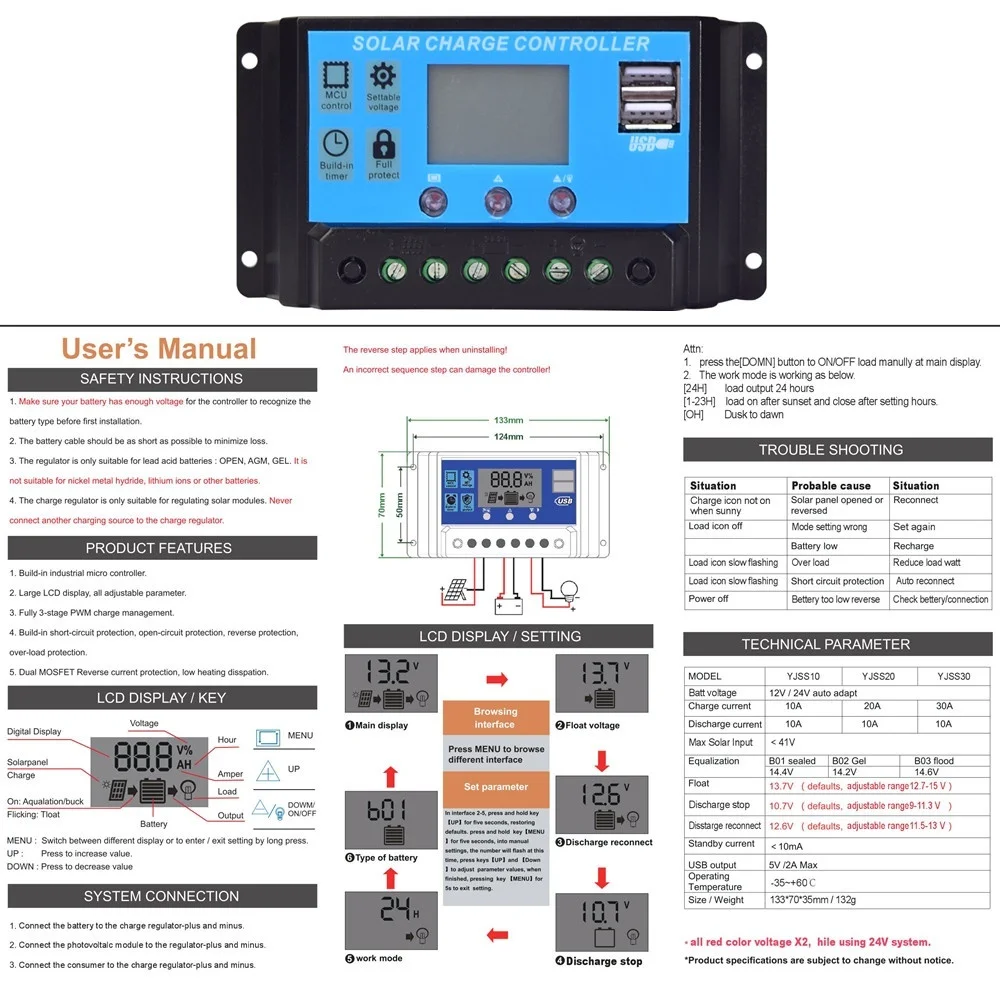

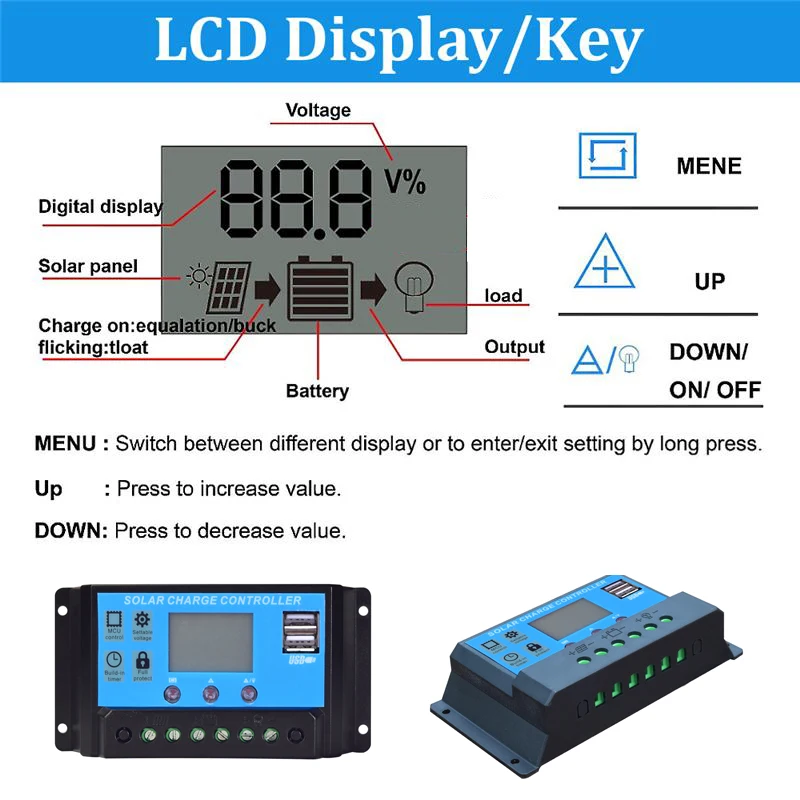

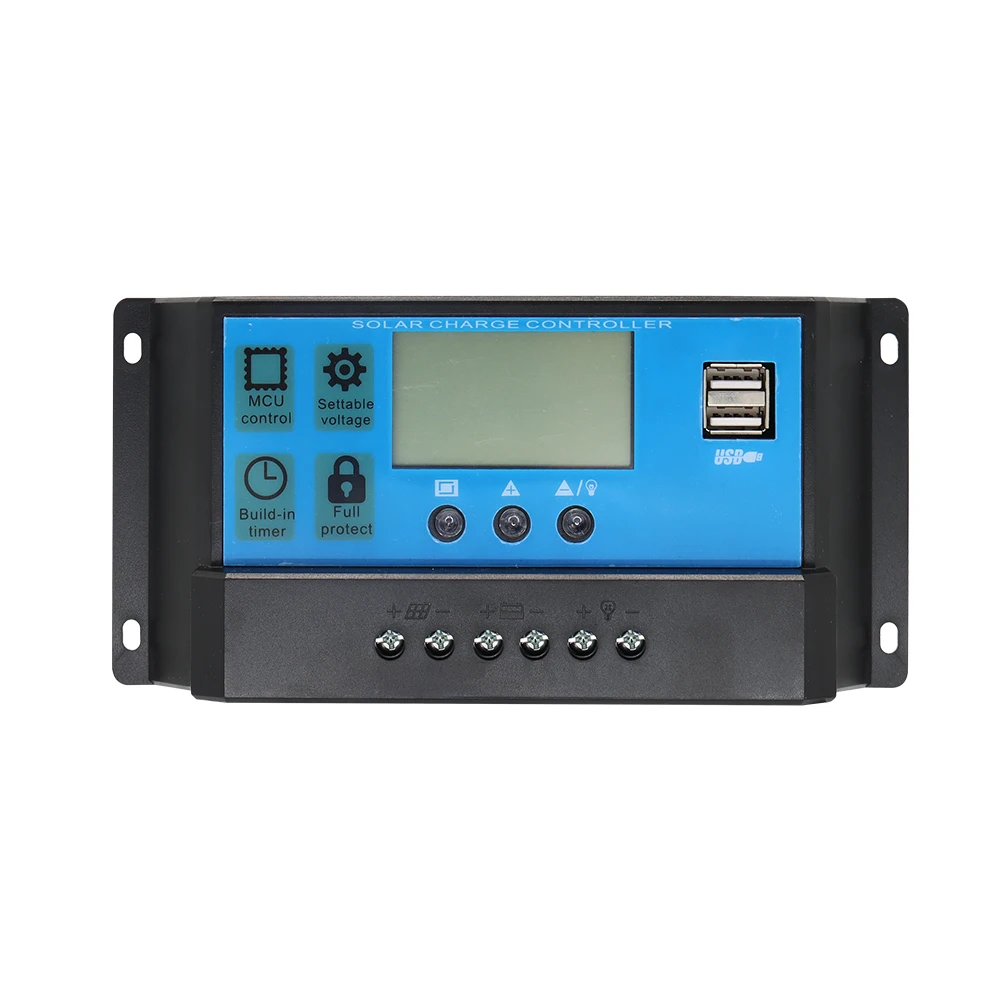

1*12v/24v 40Acontroller

1* 3meters 2.5mm² PV cable

1* 3meters 2.5mm² alligator clips

1* 4 in 1 Connector

1 * 12V to 110V 1000W Inverter

12V 220V 400W solar system*Package list:

4 * 100w solar panel

1*12v/24v 40Acontroller

1* 3meters 2.5mm² PV cable

1* 3meters 2.5mm² alligator clips

1* 4 in 1 Connector

1 * 12V to 220V 1000W Inverter

24V 220V 400W solar system*Package list:

4 * 100w solar panel

1*12v/24v 20Acontroller

1* 3meters 2.5mm² PV cable

1* 3meters 2.5mm² alligator clips

1* 2 in 1 Connector

1 * 24V to 220V 1000W Inverter

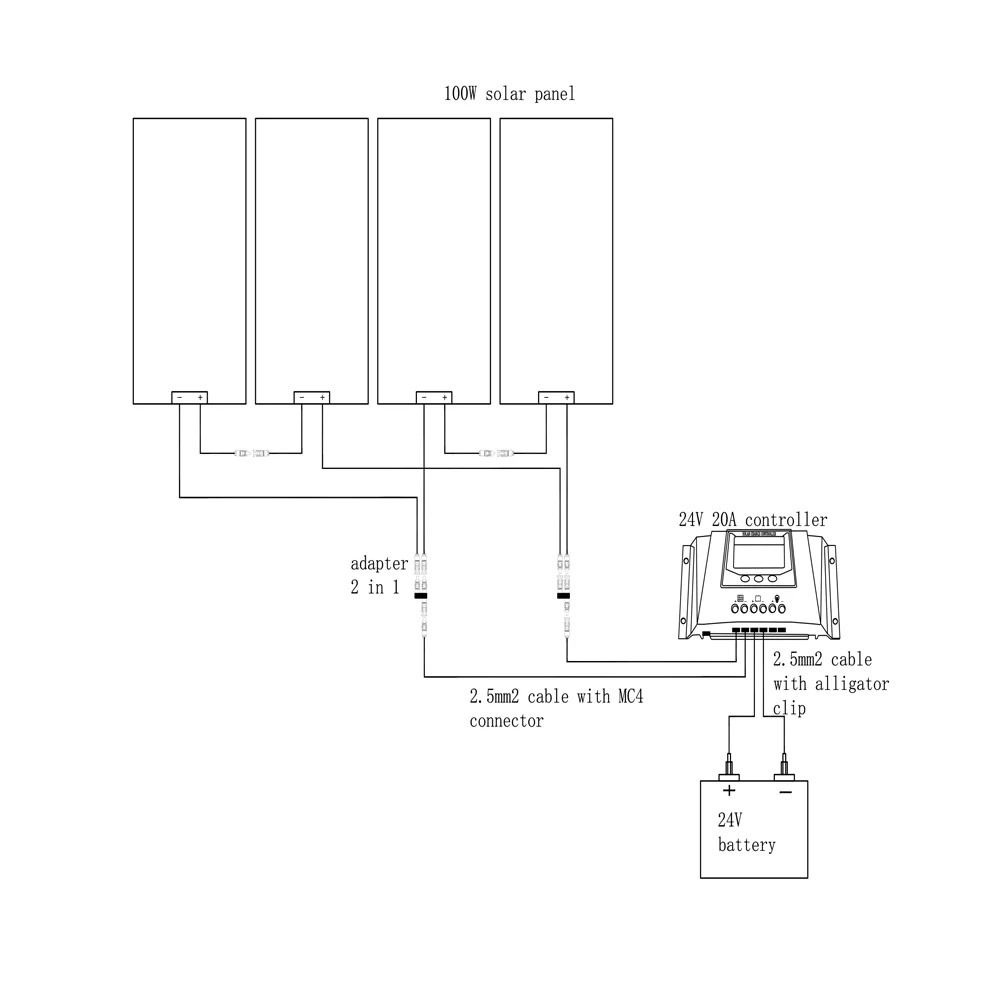

24V 110V 400W solar system*Package list:

4 * 100w solar panel

1*12v/24v 20Acontroller

1* 3meters 2.5mm² PV cable

1* 3meters 2.5mm² alligator clips

1* 2 in 1 Connector

1 * 24V to 110V 1000W Inverter

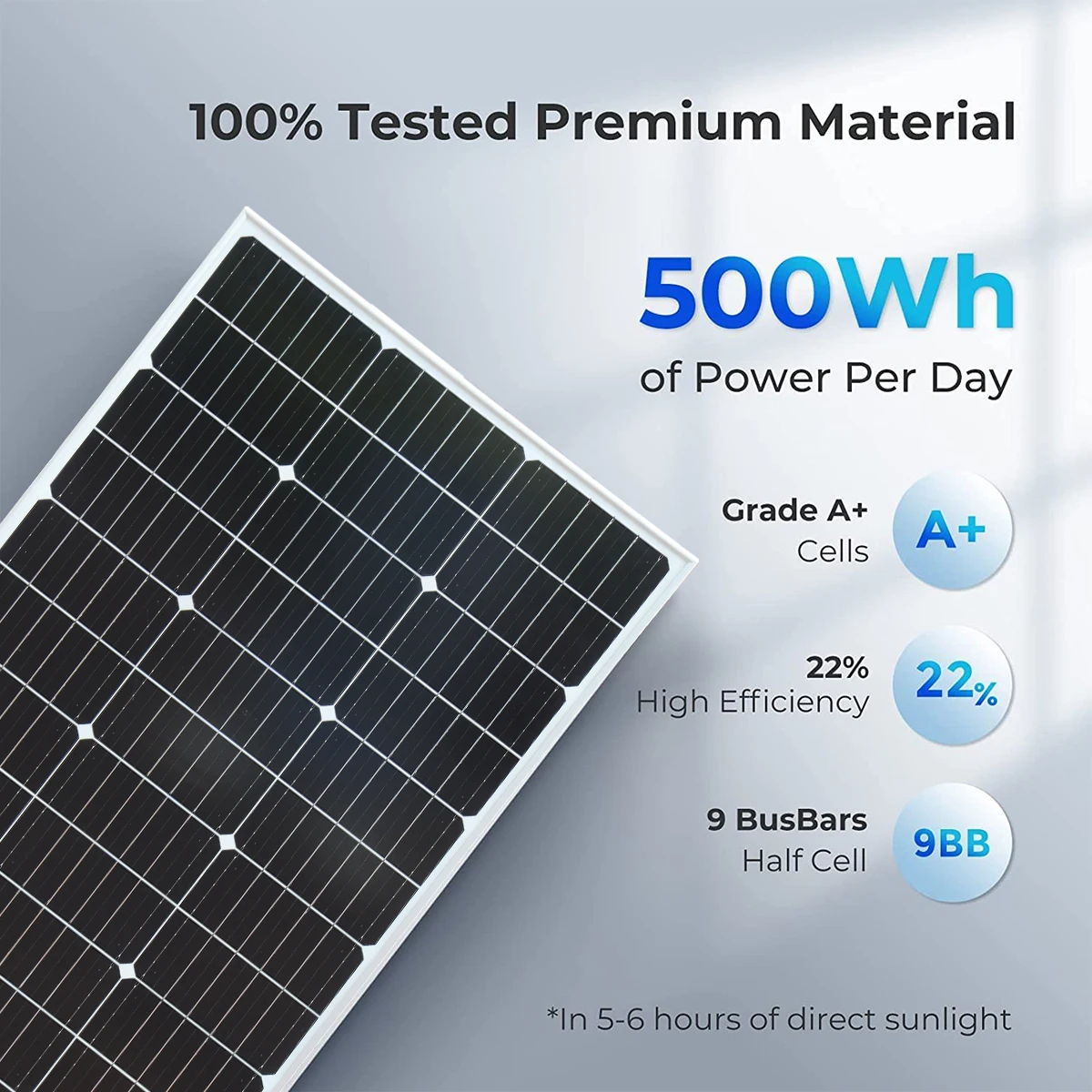

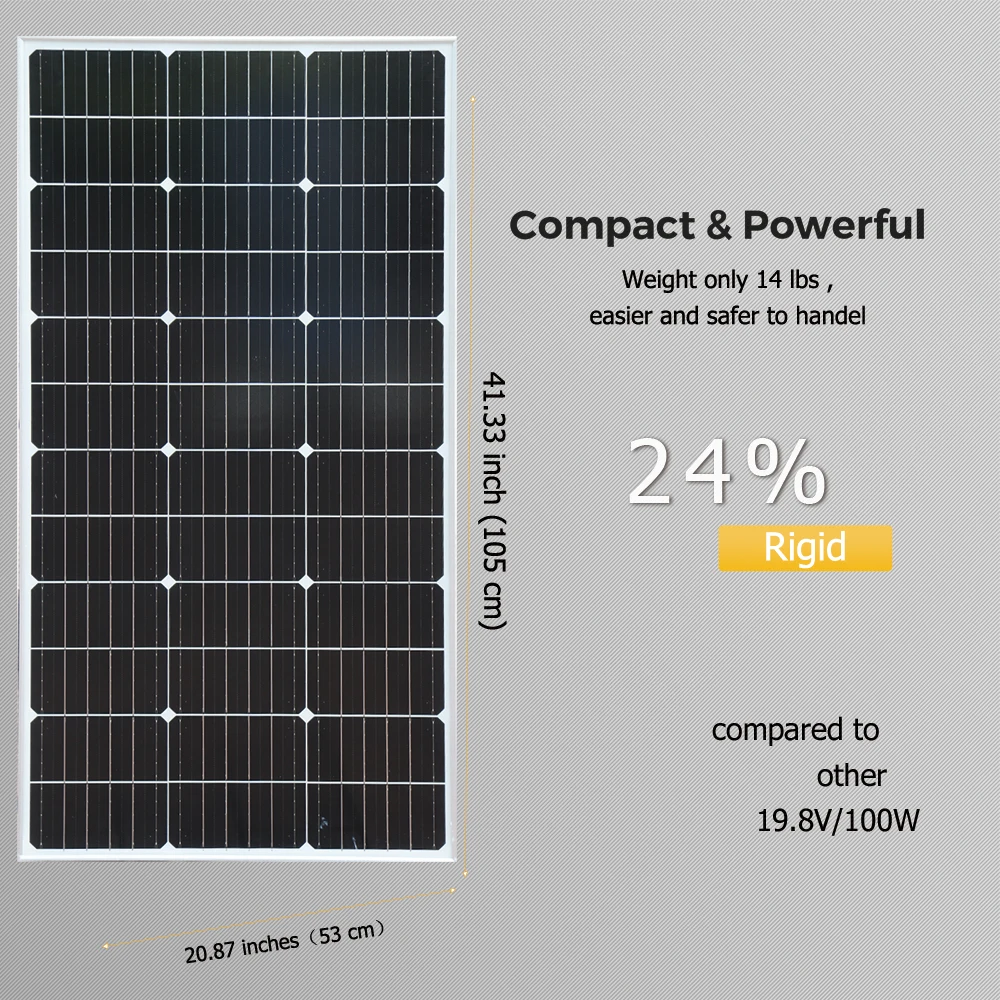

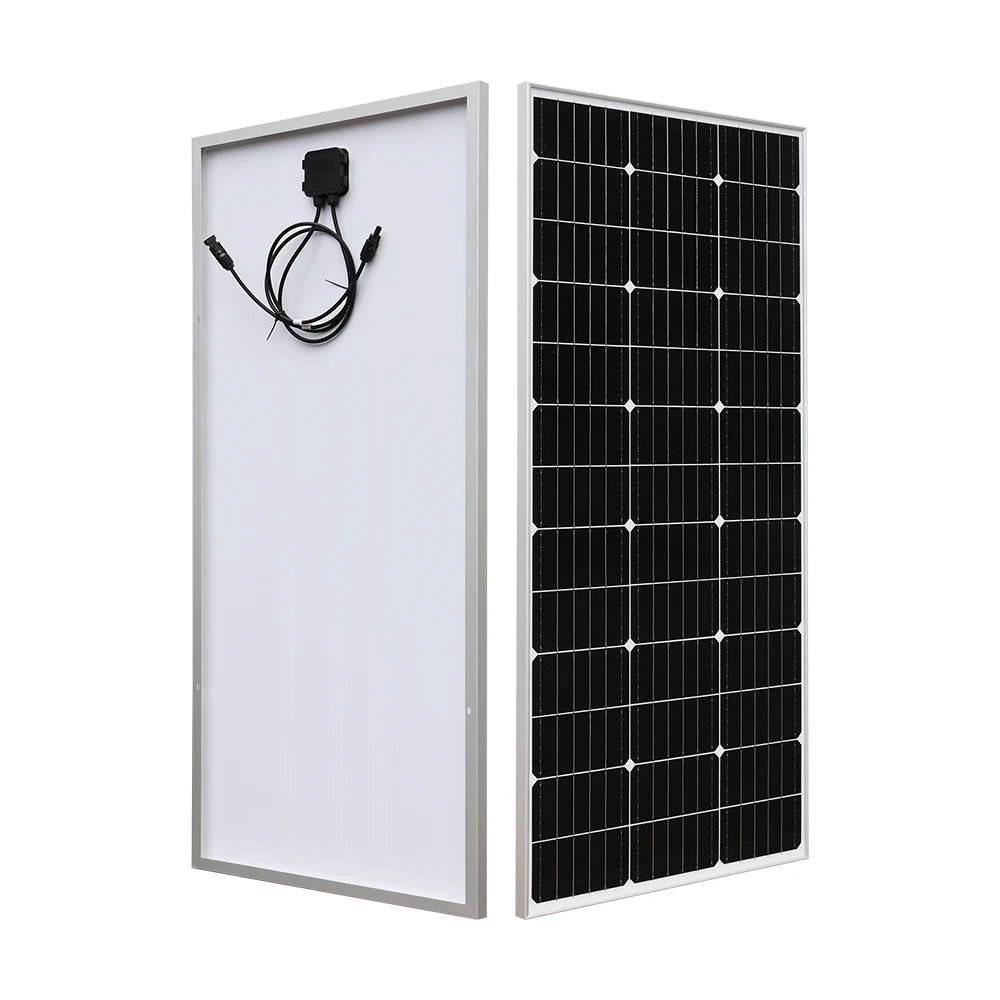

Specification of 100w solar panel

Maximum power(Pmax) 100W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Short circuit current(Isc) 6.06 A

Maximum power current(Imp) 5.55A

Cell efficiency 23%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 6kg

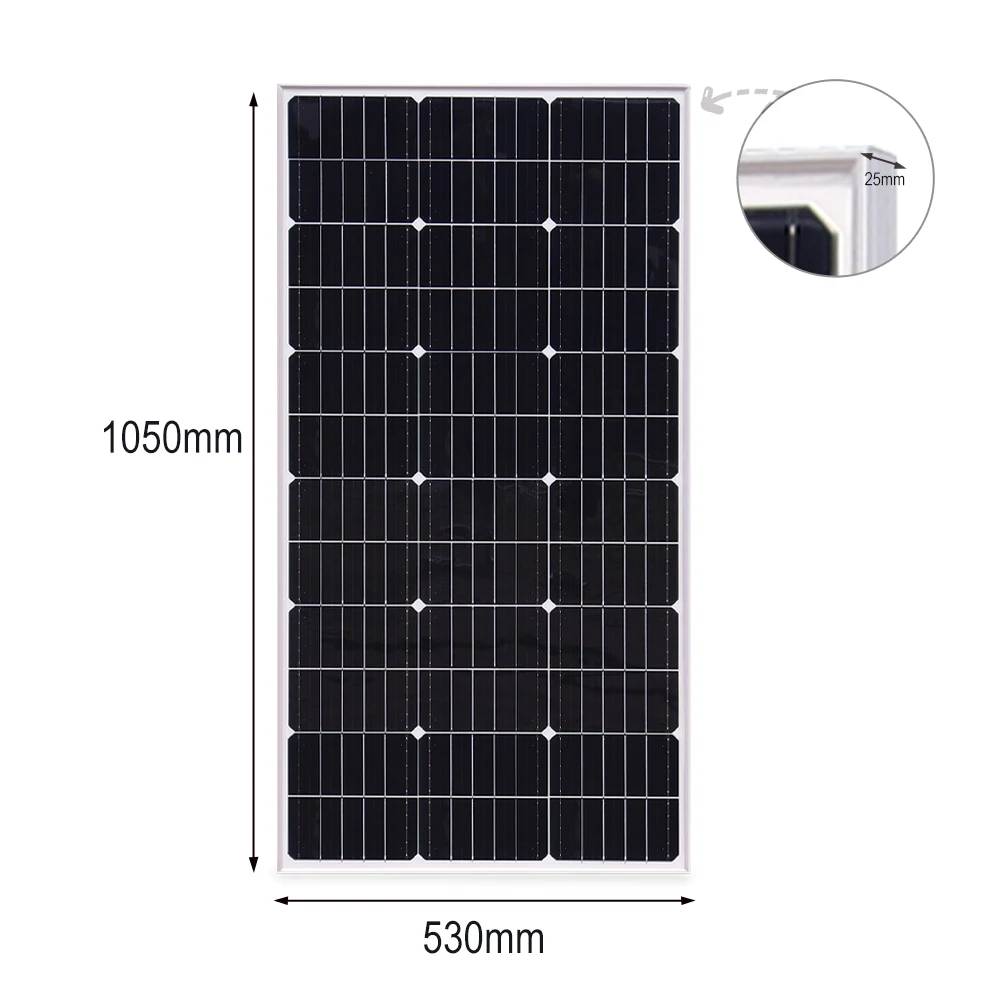

Size 1050*530*25mm
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

Solar panels have different test results at different times and temperatures
The power of 100w refers to the test result under Standard Test Conditions: lrradiance 1000w/m2, Temperature 25℃, AM=1.5

Attentions:
This product we set up warehouse in Spain，When you buy it,if you are in EU,we will ship to your country that you don't need to consider customs clearance and duties and it will be fast delivery.
However，
the zip code in Spain that starts with 07,35, 38, 51, 52.
the zip code in France 20001-20999,97100-97699,98400-98899.
the zip code in Italy that starts with 22,23,47,69. the zip code in Denmark 100-999,3900-3999.
the zip code in Portugal 9000-9900. Mont Athos in Greece.
the zip code in Finland 2200-2299

Accessories:
Specification
Name

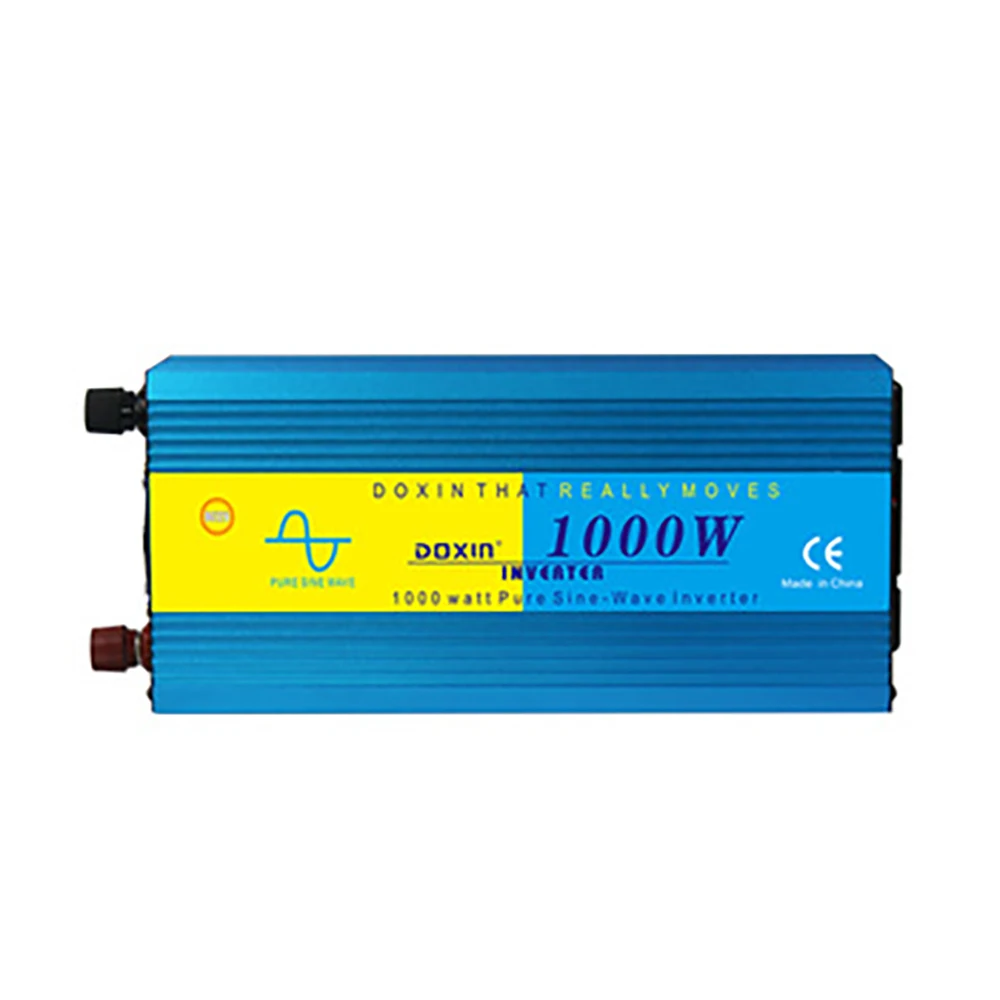

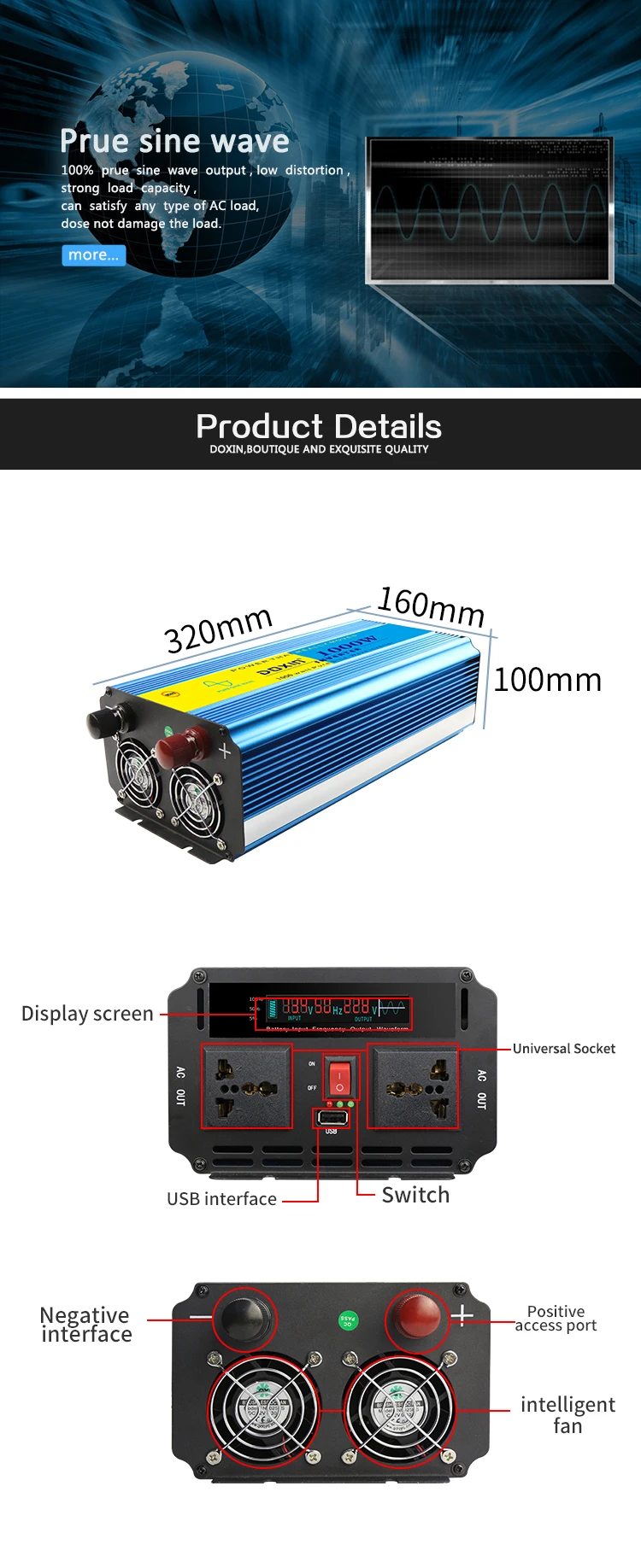

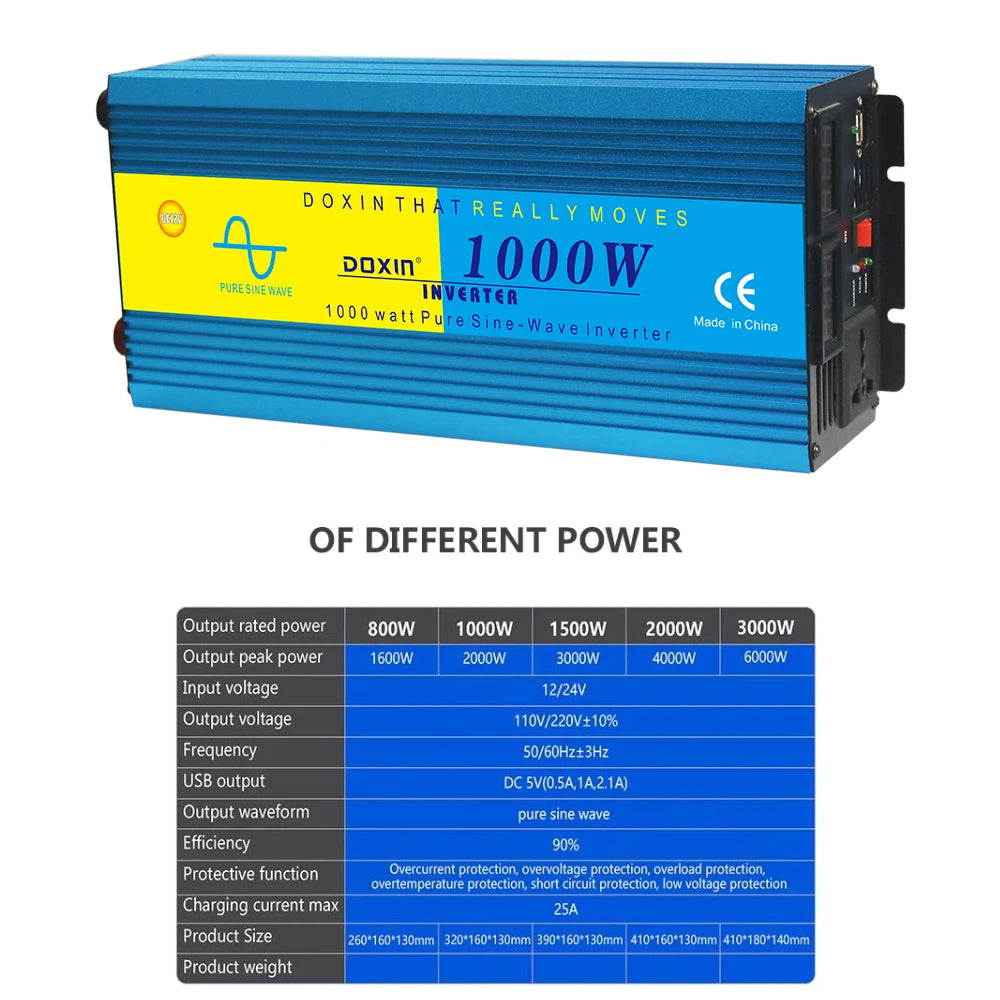

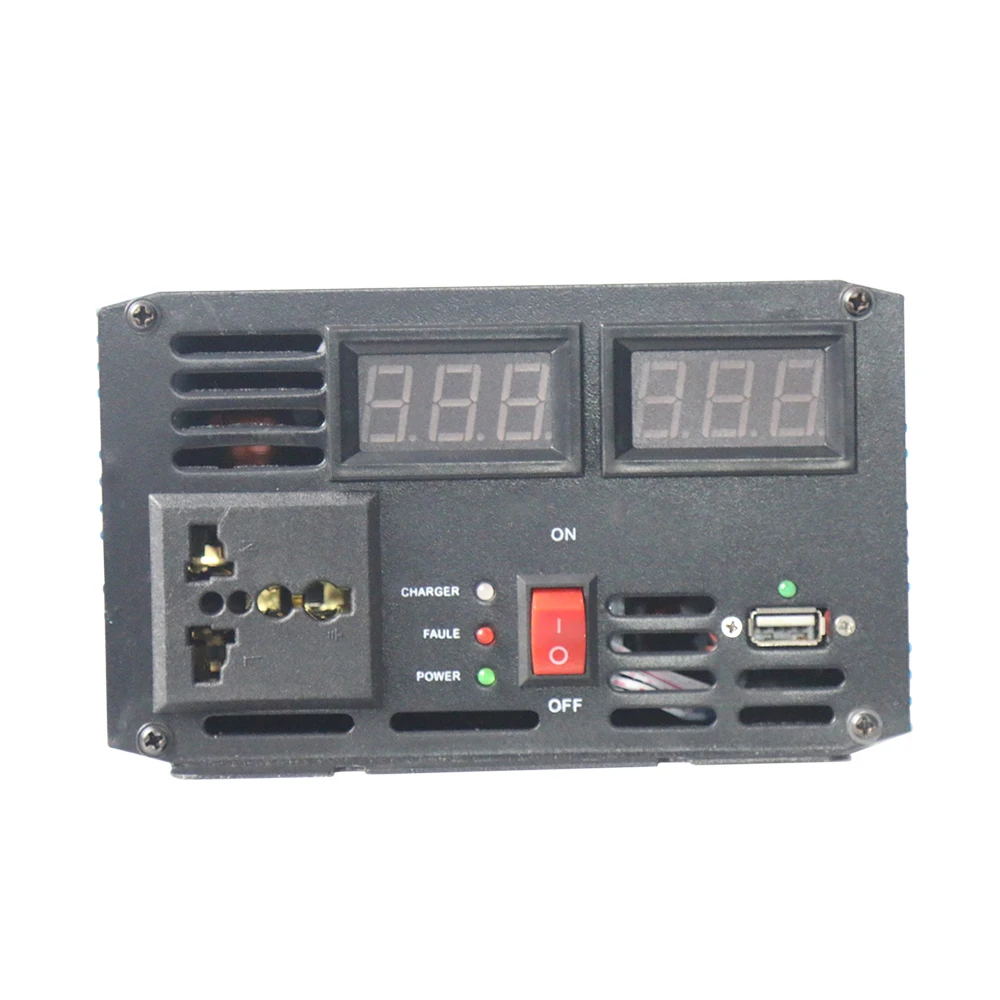

1000W pure sine wave inverter
Material
Aluminum-magnesium alloy
Color
Blue
Function
1. Solar inverter 2. Car inverter 3. Energy storage DC power inverter
Feature

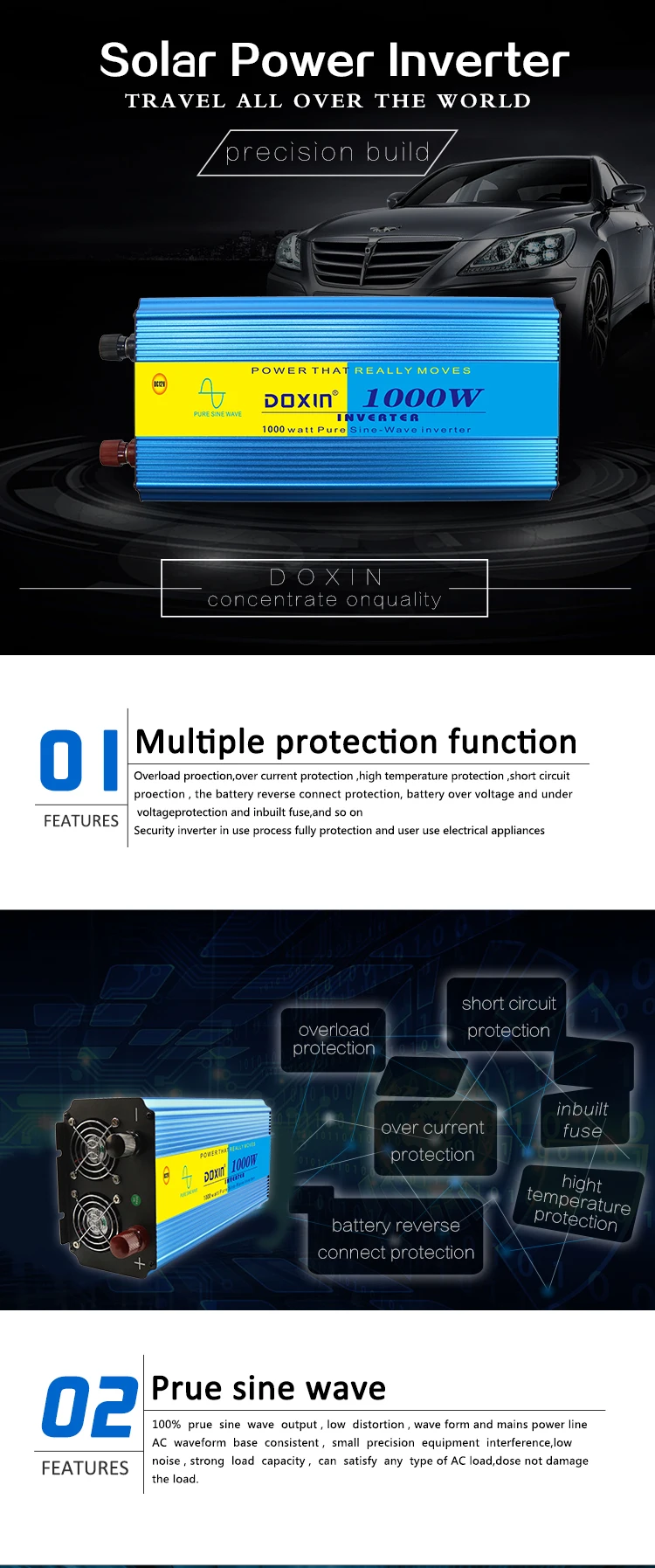

1. There are protections for overvoltage, overcurrent, overload, short circuit, undervoltage, high temperature, etc. 2. Dual
universal plugs are available worldwide, with two 2.1A USBs 3. Dual fan cooling 4. Product with remote control 5. Product with
wireless function 7. Fixed output wiring 8. The product is connected with a safety ground wire
Usage
Can be used for outdoor picnics, home use, ship use, engineering use, etc.

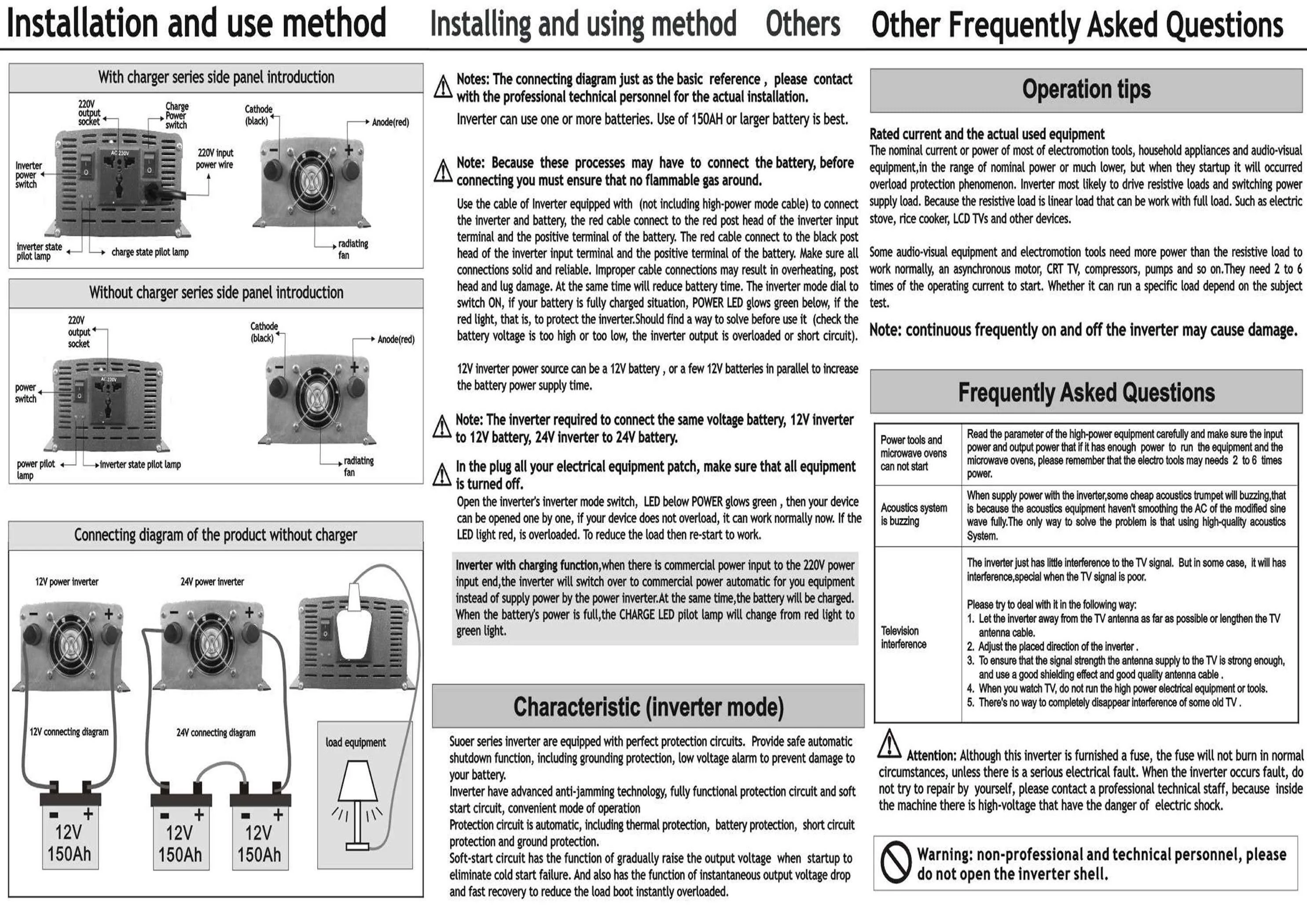

Q1.The electric appliance doesn't work and the indicator light isn't on.

Reason:
1. Faulty battery.
2. Wrong connection of positive pole and negative pole.
3. Loose connection of the cables.
Answer:
1. Check the battery, and change it if needed.
2. Check the connection of battery. The inverter might be damaged and should
be changed or sent to be repaired.
3. Check the cables and connection points, and tighten the terminals.
Q2. The electric appliance doesn't work and the RED indicator light is on.
Reason:
1. The rated power of electric appliance exceeds the nominal power of inverter
which leads to over load shut down.
2. The rated power of electric appliance is less than the nominal power of the inverter
but its peak power is too high which leads to over load shutdown
3. The electricity in battery runs out (the inverter alarms)
4. Poor ventilation causes over heat shutdown
5. Input voltage is too high.
Answer:
1. Please use the electric appliance which power is less than the nominal power of inverter.
2. The peak power of electric appliance is no more than that of power inverter, or the same power.
3. Charge the battery or change it.
4. Turn off the inverter for 15 minutes, remove the items near fan and those around the inverter,
and put the inverter in a shady and cool place
5. Turn off the inverter and test the output voltage of battery.

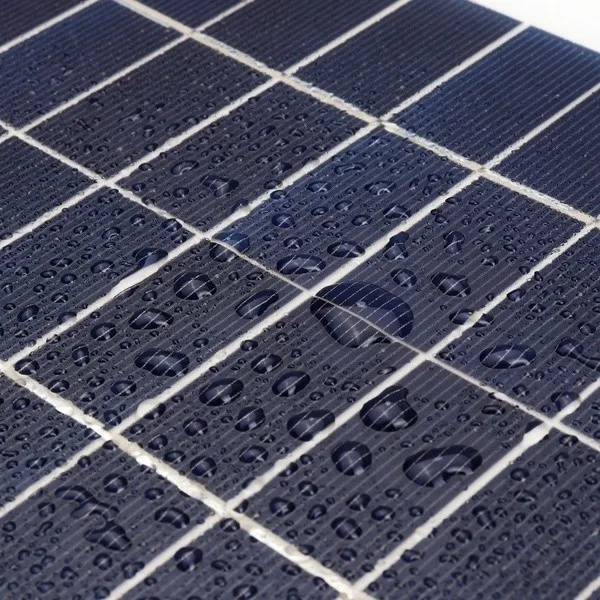

Waterproof

Easy to inatall
2 holes of right and left side 6mm*9mm(oval)

Notes for use:
a. This product must not come into contact with highly corrosive substances.
b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.
g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

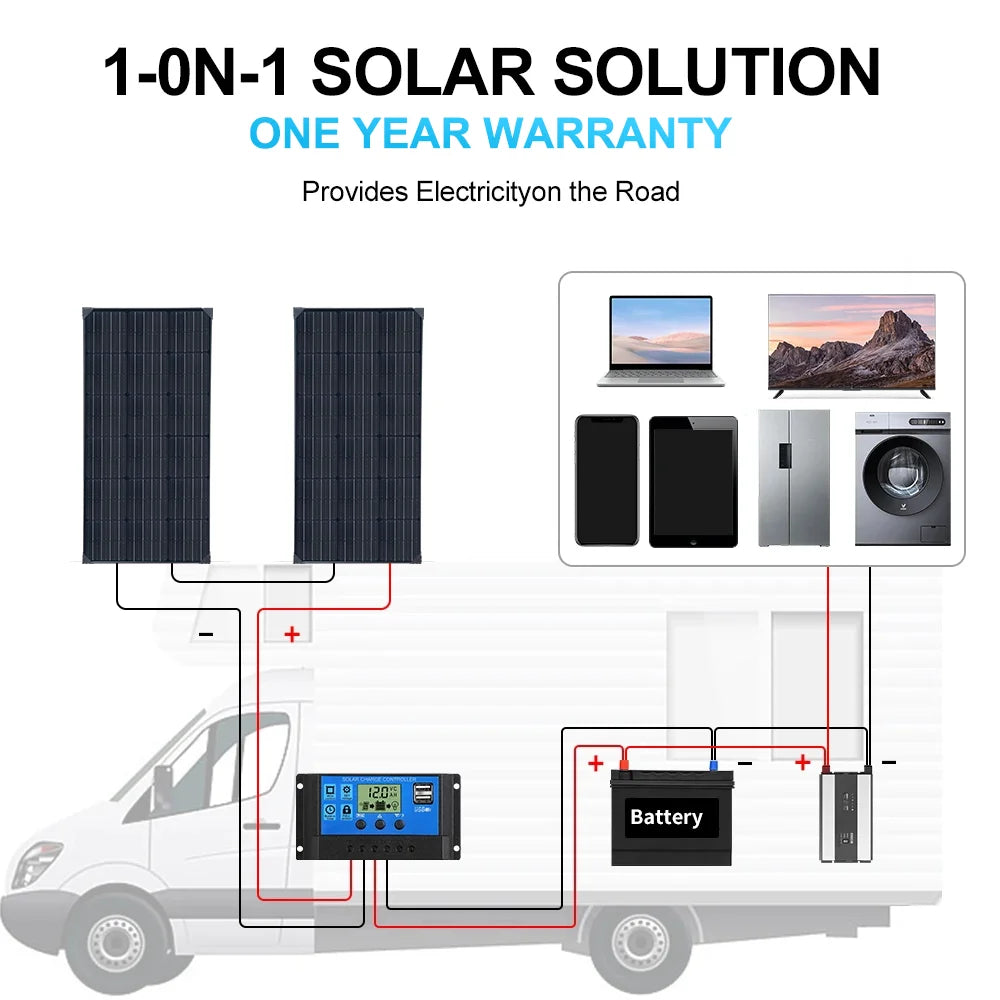

i. The inverter can only be connected to the battery, not directly to the controller.

Applications:
