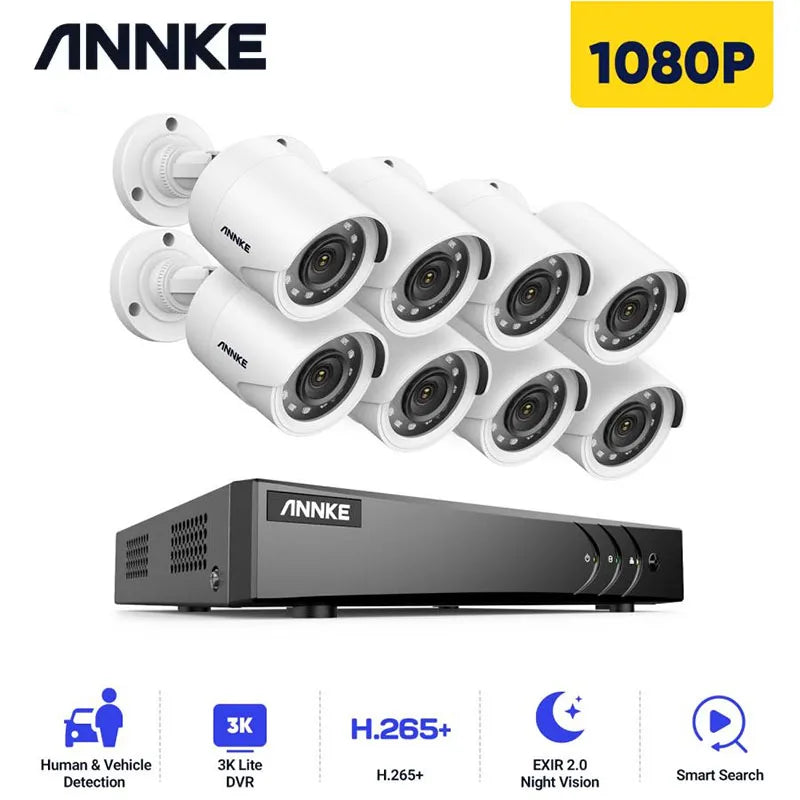

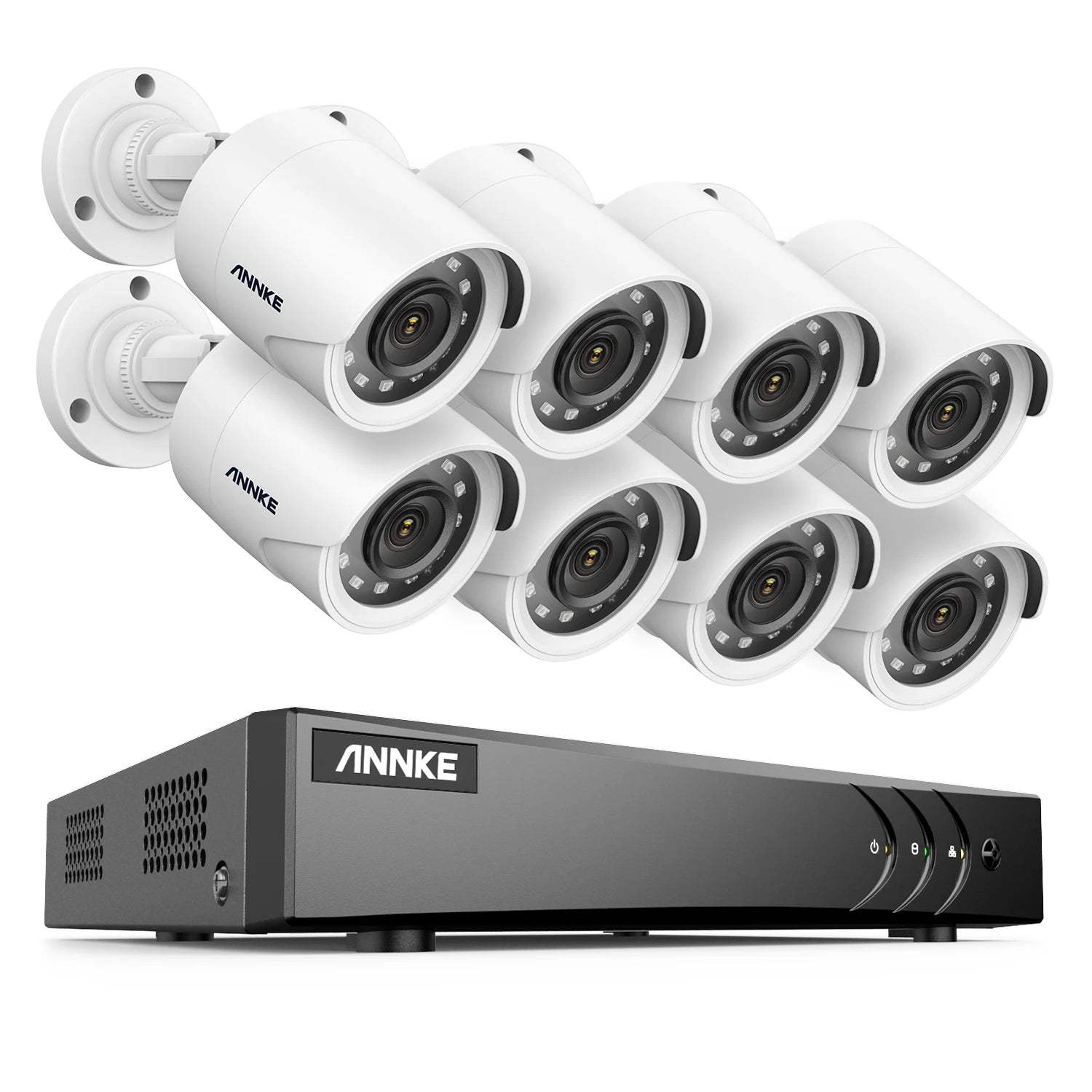

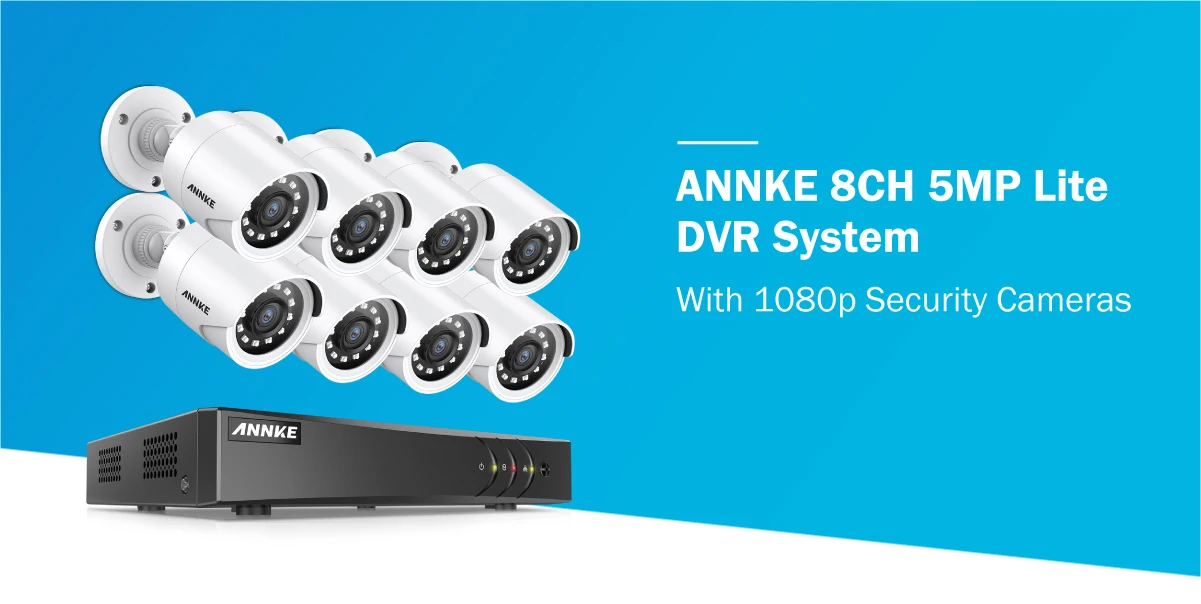

ANNKE 1080P H265 8-Channel CCTV DVR System With 8 Cameras

ANNKE 1080P H265 8-Channel CCTV DVR System With 8 Cameras

$296.99 USD
$0.00 USD $296.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Build-in HDD
Ships From

Secure your property with this ANNKE 1080P H.265+ 8CH CCTV DVR System, delivering crisp footage, smart analytics, and flexible compatibility for your home or small business.

  • 8-channel DVR supports 4 analog cameras plus 2 IP inputs, with up to 12 channels in IP-enhanced mode, letting you blend legacy cams with modern IP devices.

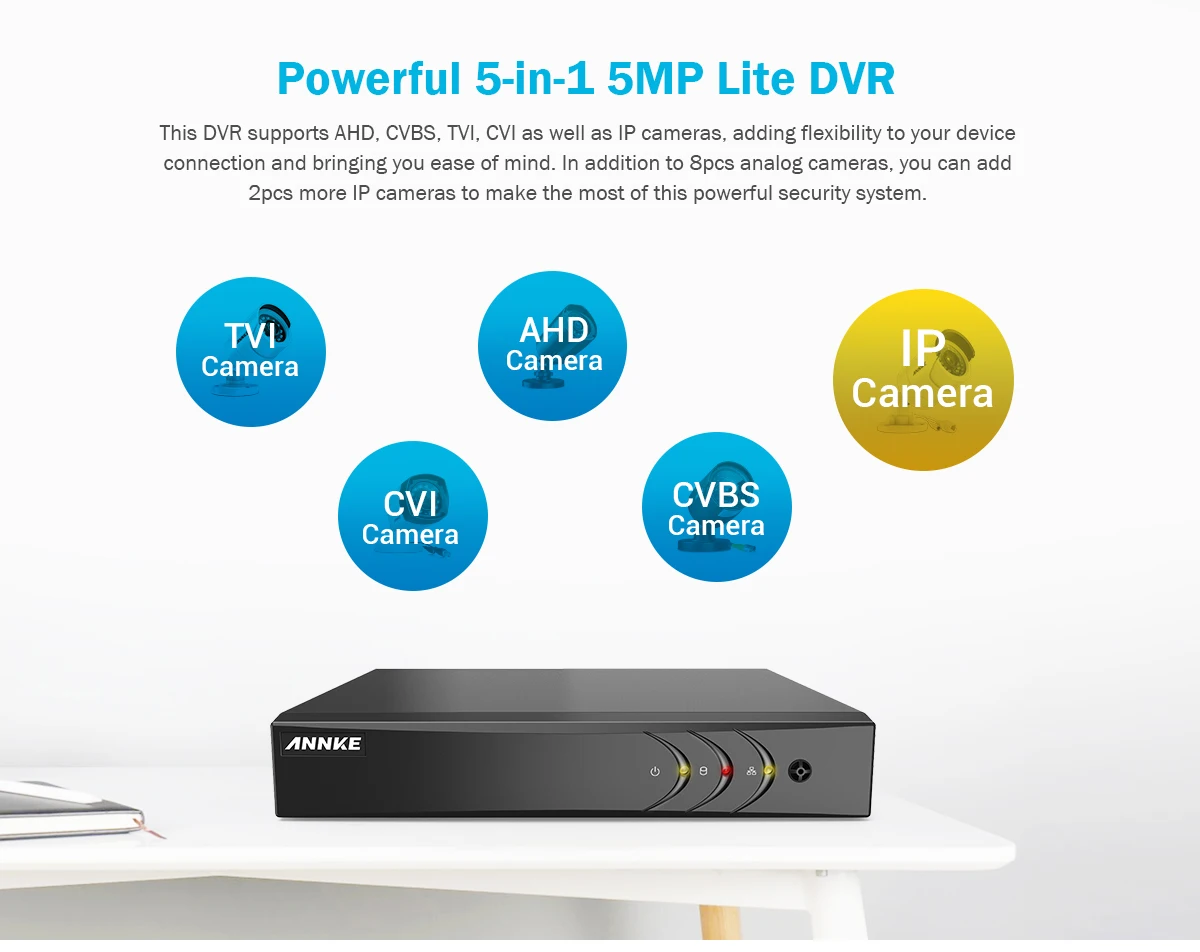

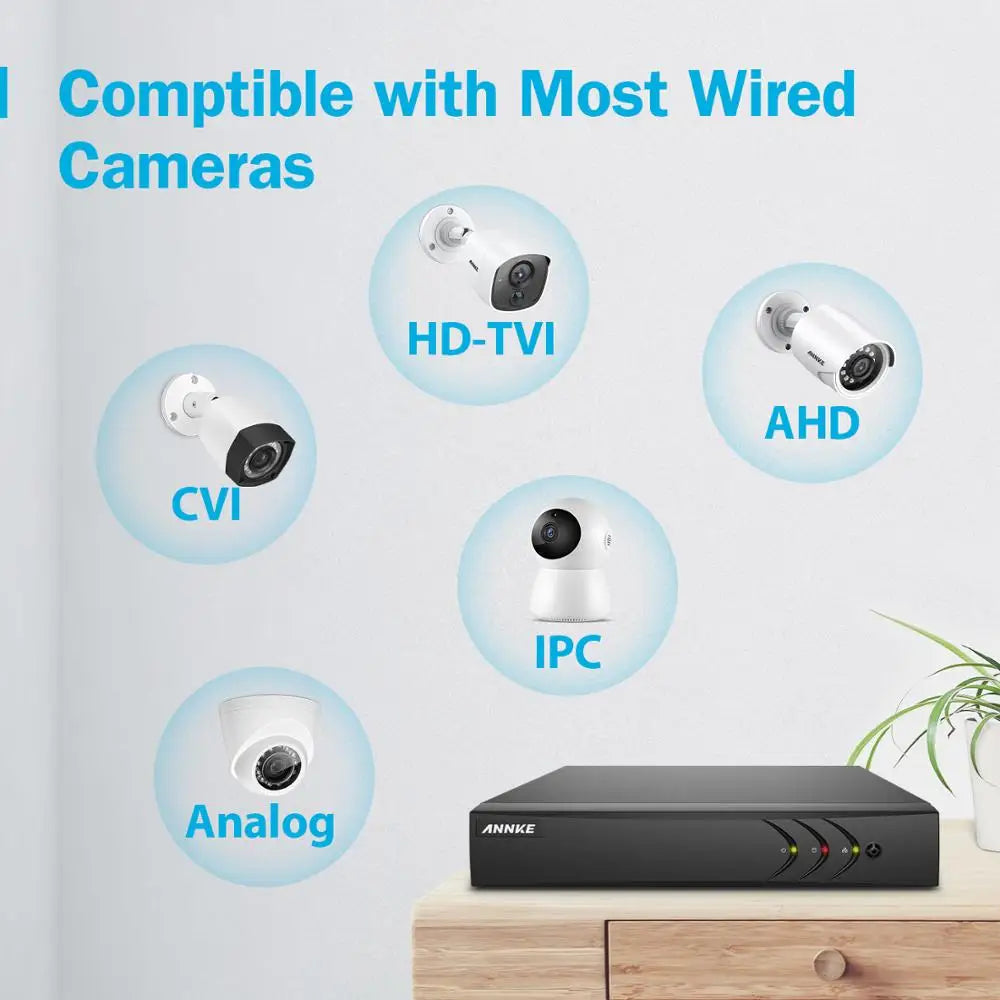

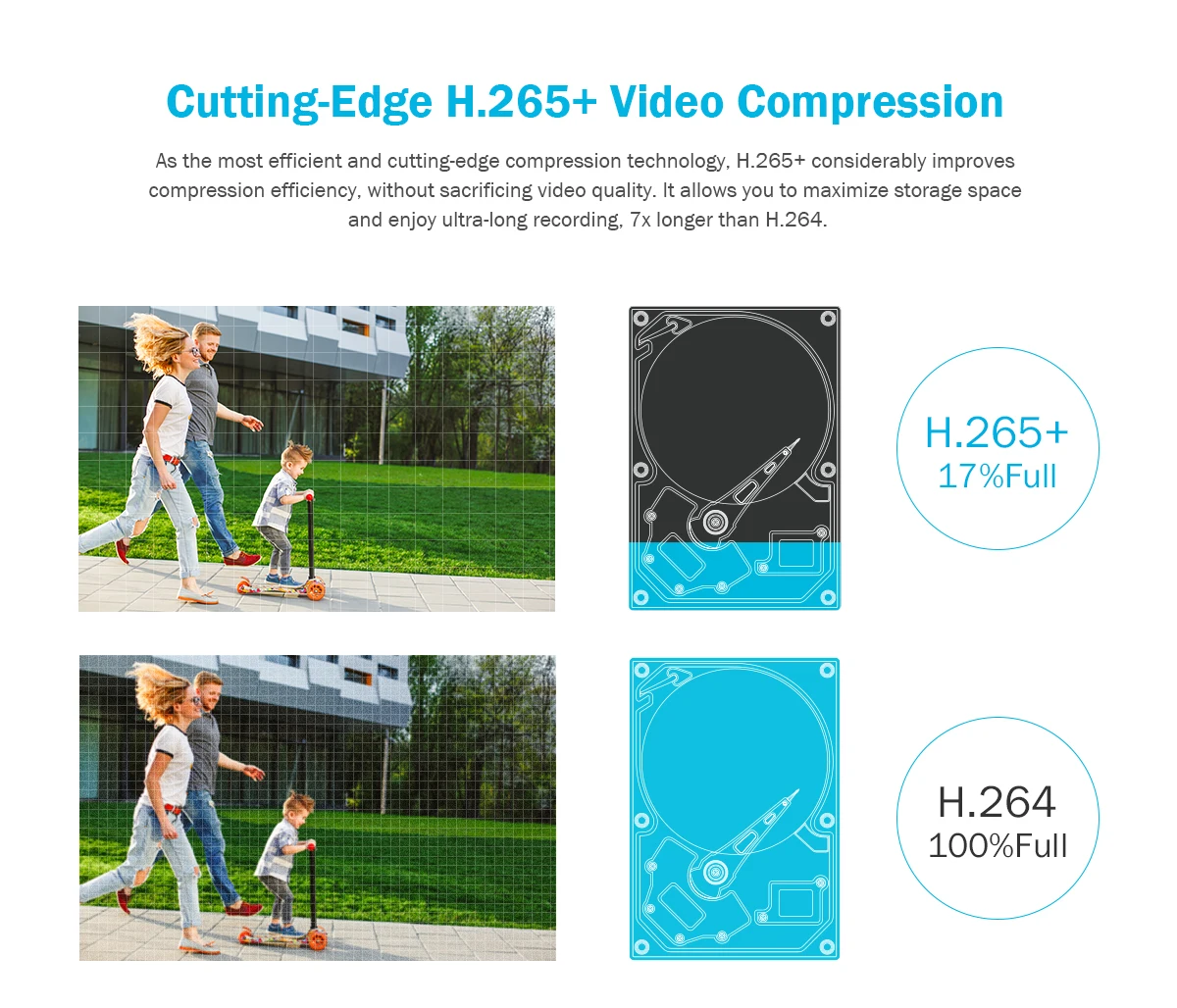

  • 5-in-1 input (TVI/AHD/CVI/CVBS/IPC) and H.265 Pro+ compression keep your recordings reliable and bandwidth-efficient, with up to 3K live viewing and 3K Lite playback.

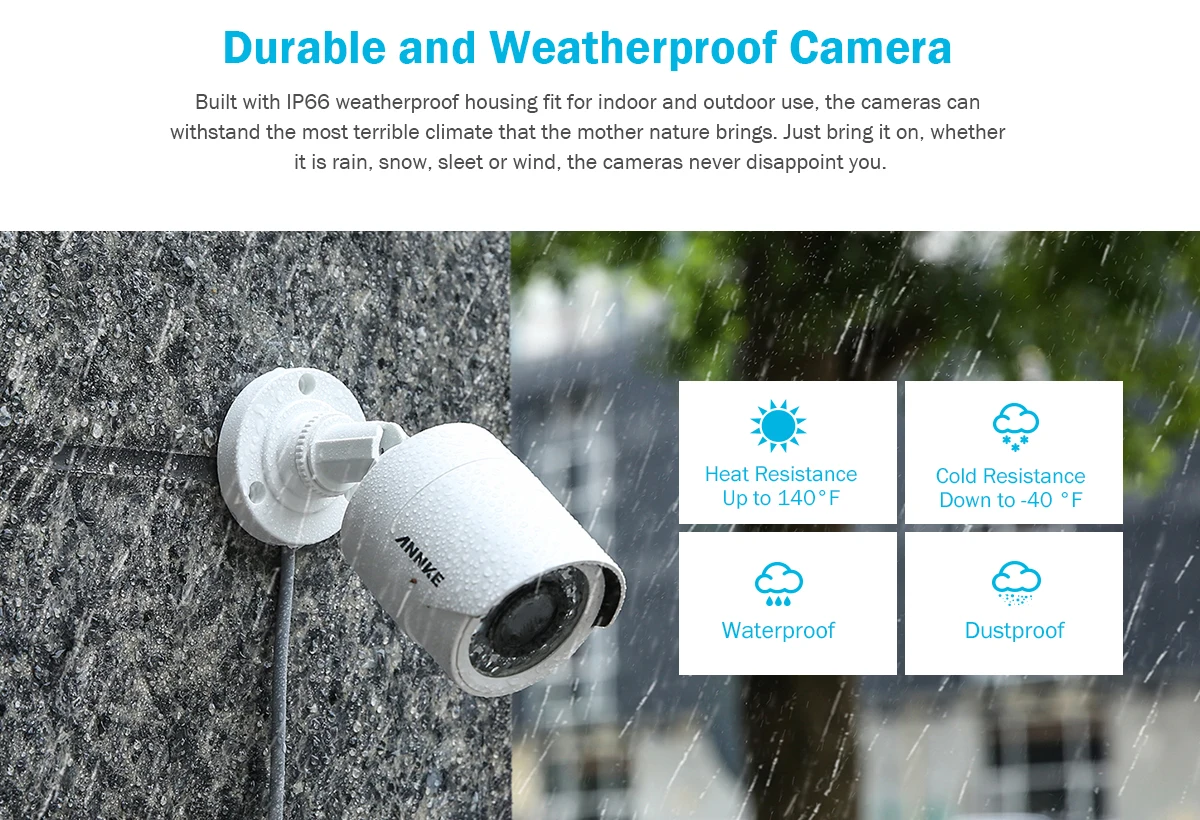

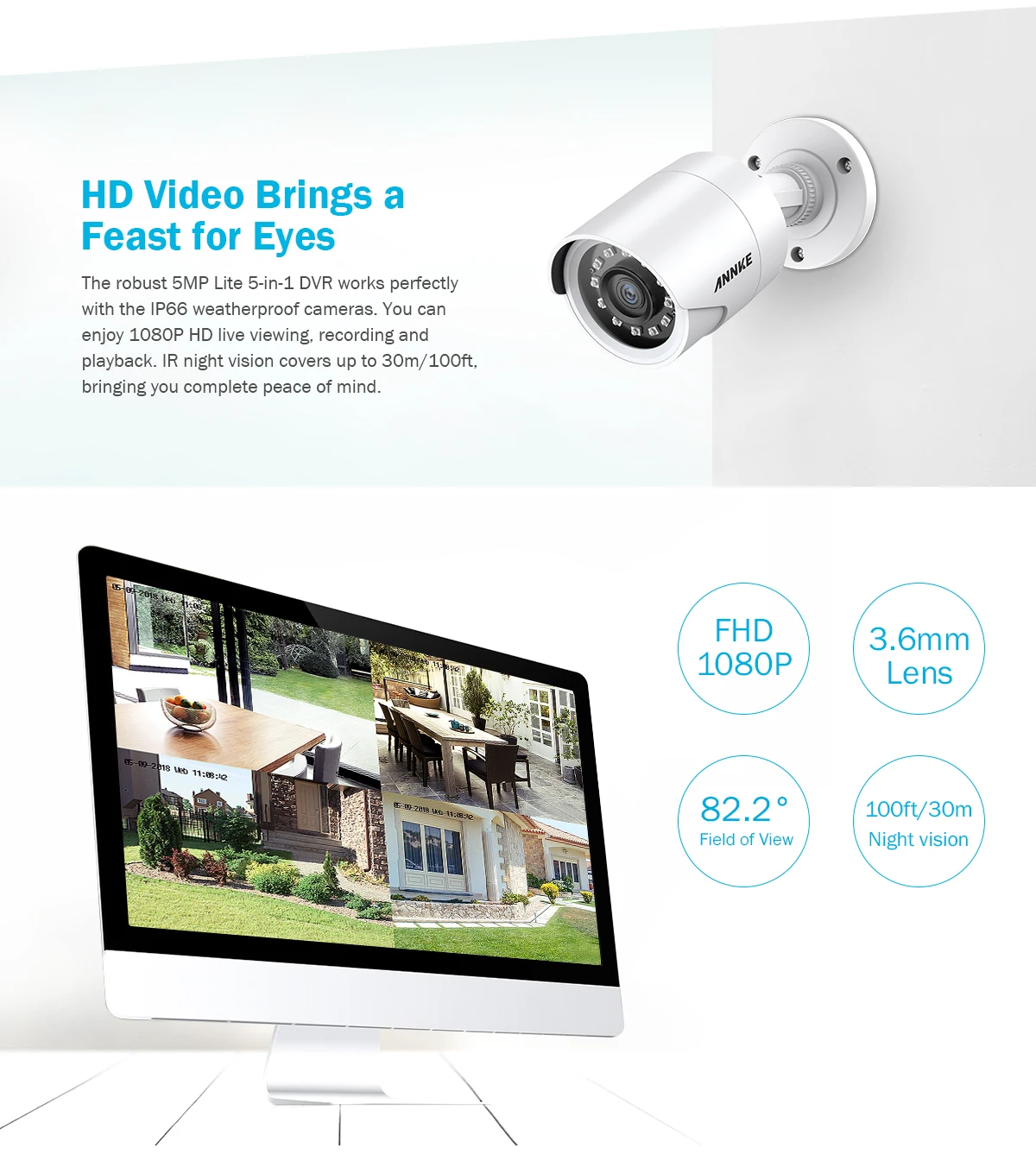

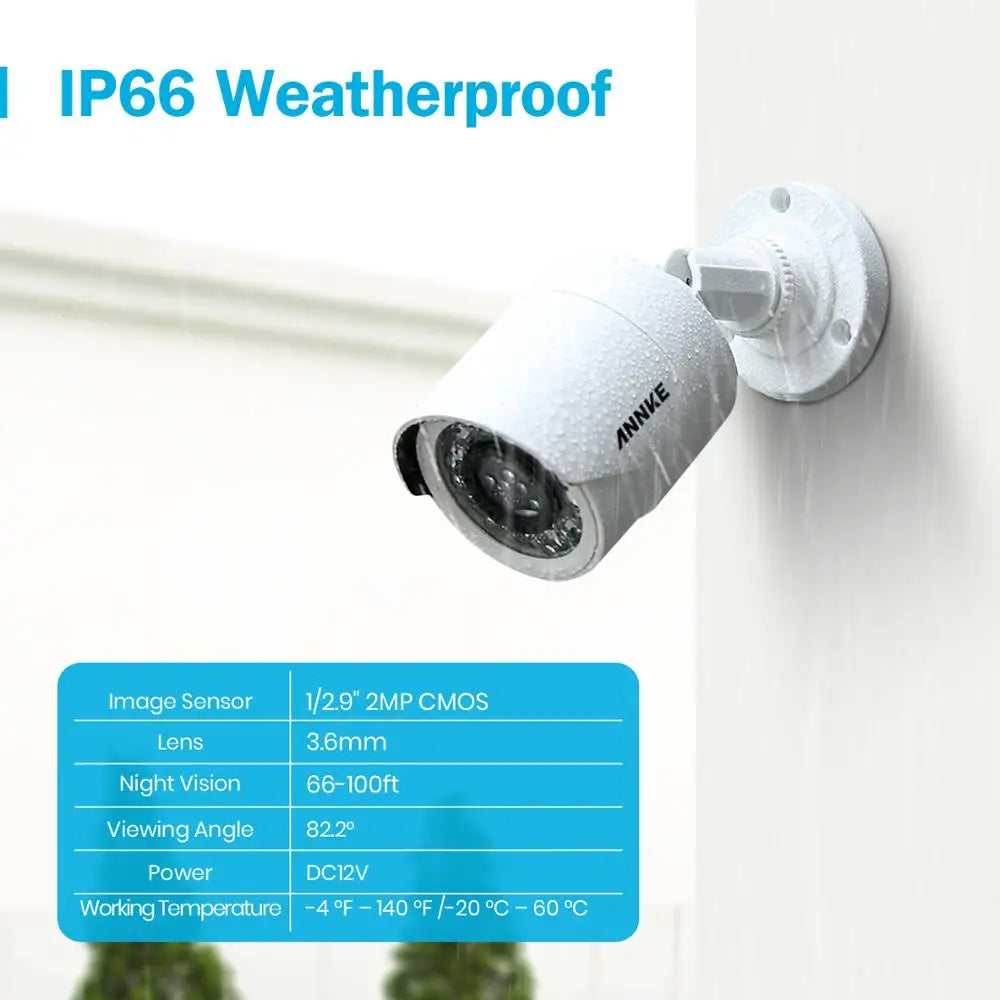

  • 2.0 MP bullet cameras give you up to 100 ft (30 m) night vision, IP66 weatherproof housing, 82.2° view, and auto IR-cut for clear day and night.

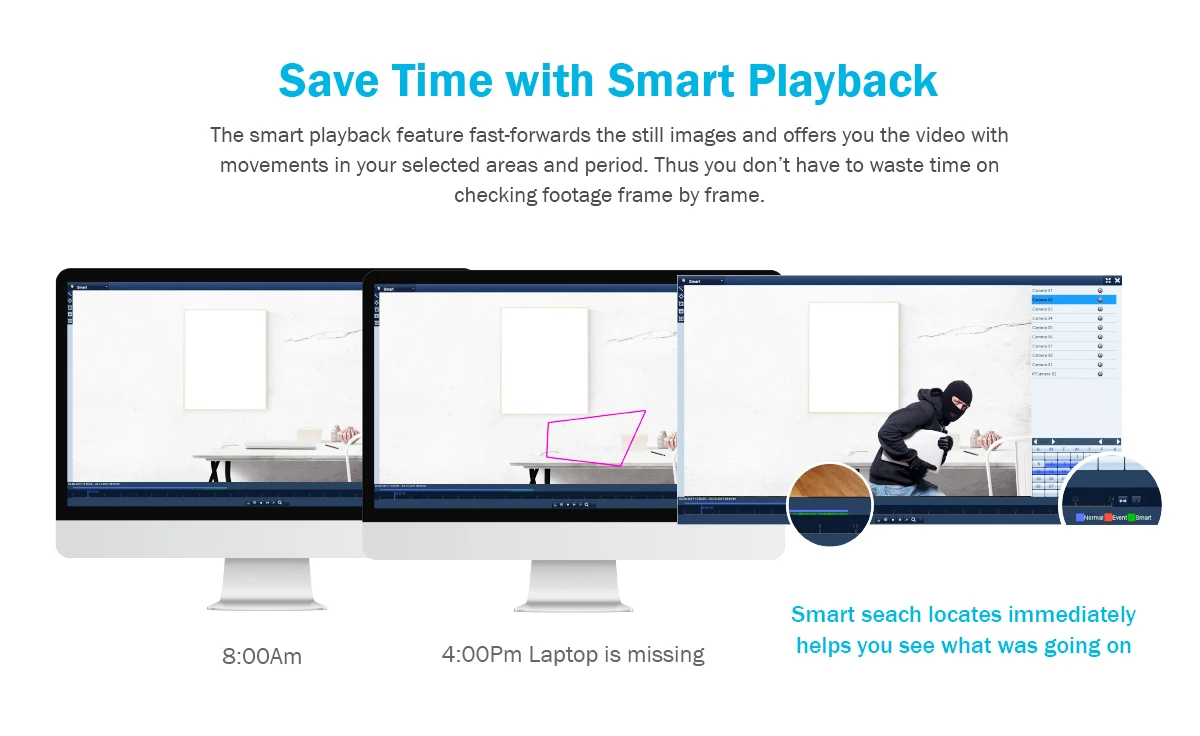

  • Remotely monitor on iPhone, iPad, and Android with Motion Detection 2.0 (human/vehicle), quick search by object or event, and HDMI/VGA playback up to 1080p.

Analog HD Camera

Image sensor

5MP CMOS Image sensor

Camera

Video Resolution

2560 (H) × 1944 (V)

Signal System

PAL/NTSC

Frame Rate

PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps

Lens

2.8mm

Min.Illumination

Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Angle of View

85.5°

Number of Infra-Red LEDs

2

Night Vision Distance

Up to 100ft/30m

DNR

2D DNR

Wide Dynamic Range

Digital WDR

IR Cut Filter

Yes

Video Output

HD BNC×1

General

Housing

Plastic

Color

White

Operating Power

DC12V

Operating Temperature

-40 °F – 140 °F /-40 °C – 60 °C

Indoor/Outdoor

Indoor/Outdoor

Weatherproof Rating

IP67

Dimension (L x W x H)

2.28” x 2.40” x 6.42” / 58 x 61 x 163mm

Weight

0.4lbs / Approx. 180g

DVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265 Pro+

Video Input

8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)

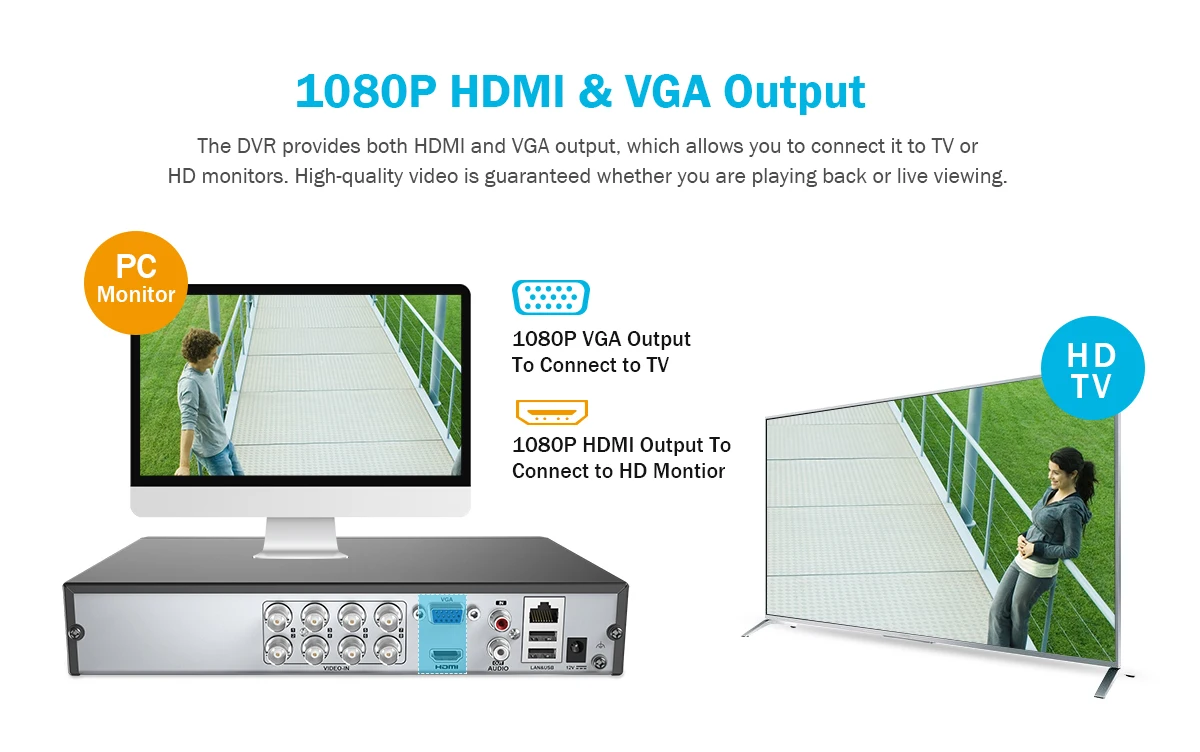

Video Output

HDMI and VGA Up to 1080P

Audio Input

1-ch RCA,8-ch via coaxial cable

Audio Output

1-ch RCA

Supported Camera Types

Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P

Analog HD Playback Resolution

3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps

IPC Playback Resolution

Up to 6MP

Max Playback Channel

8-ch

Network Protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Total Bandwidth

96Mbps

Remote Connection

64

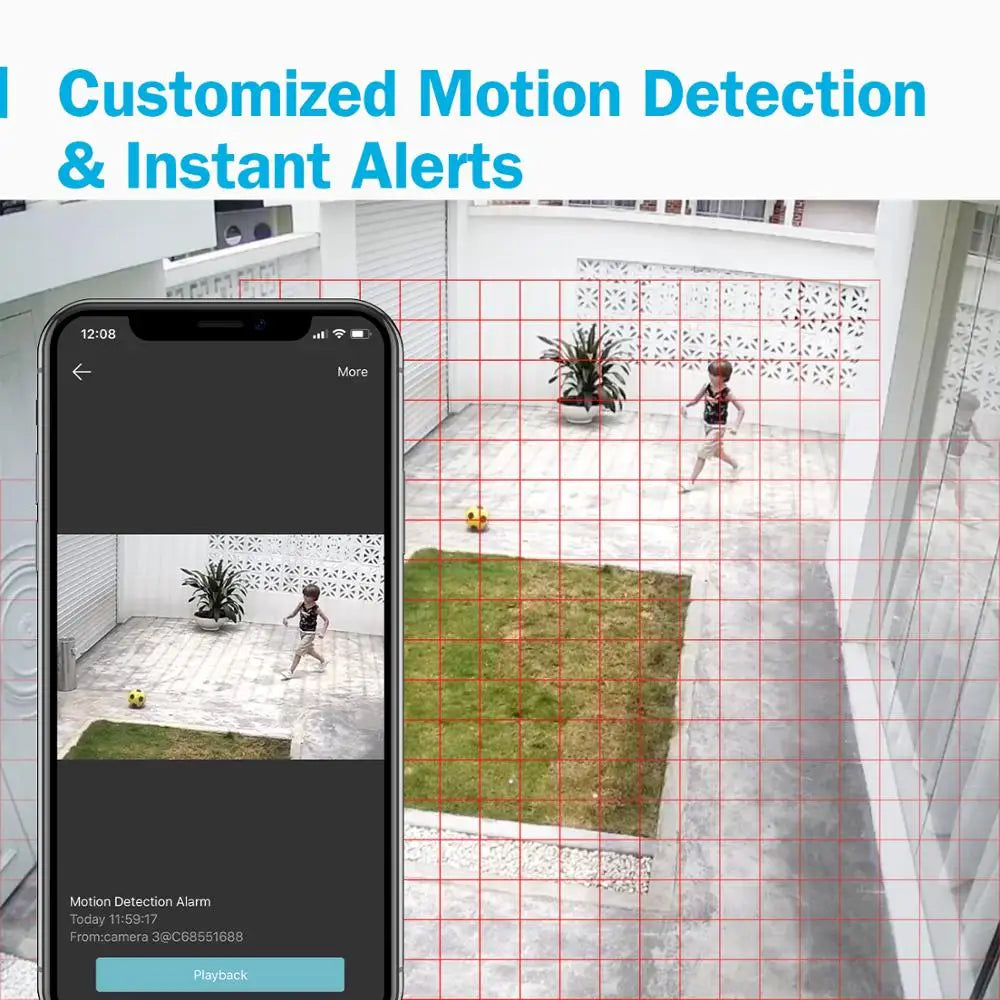

Motion Detection 2.0

All analog channels support human and vehicle detection to reduce false alarm

Hard Drive

HDD

1 SATA interface

HDD Capacity

Up to 10TB capacity

External Interface

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB

USB2.0x2

General

Operating Power

DC12V,≤ 12W (without HDD)

Working Temperature

-14 °F – 131 °F /-10 °C – 55 °C

Dimensions(W x H x D)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk)

≤ 1 kg (2.2 lb)(without HDD)
