ANNKE 1080P H.265+ 8CH CCTV DVR System IP66 Cameras
ANNKE 1080P H.265+ 8CH CCTV DVR System IP66 Cameras
Couldn't load pickup availability
Experience clear, reliable home surveillance with the ANNKE 1080P 8‑Channel DVR System, delivering crisp footage, smart detection, and flexible recording for your property.

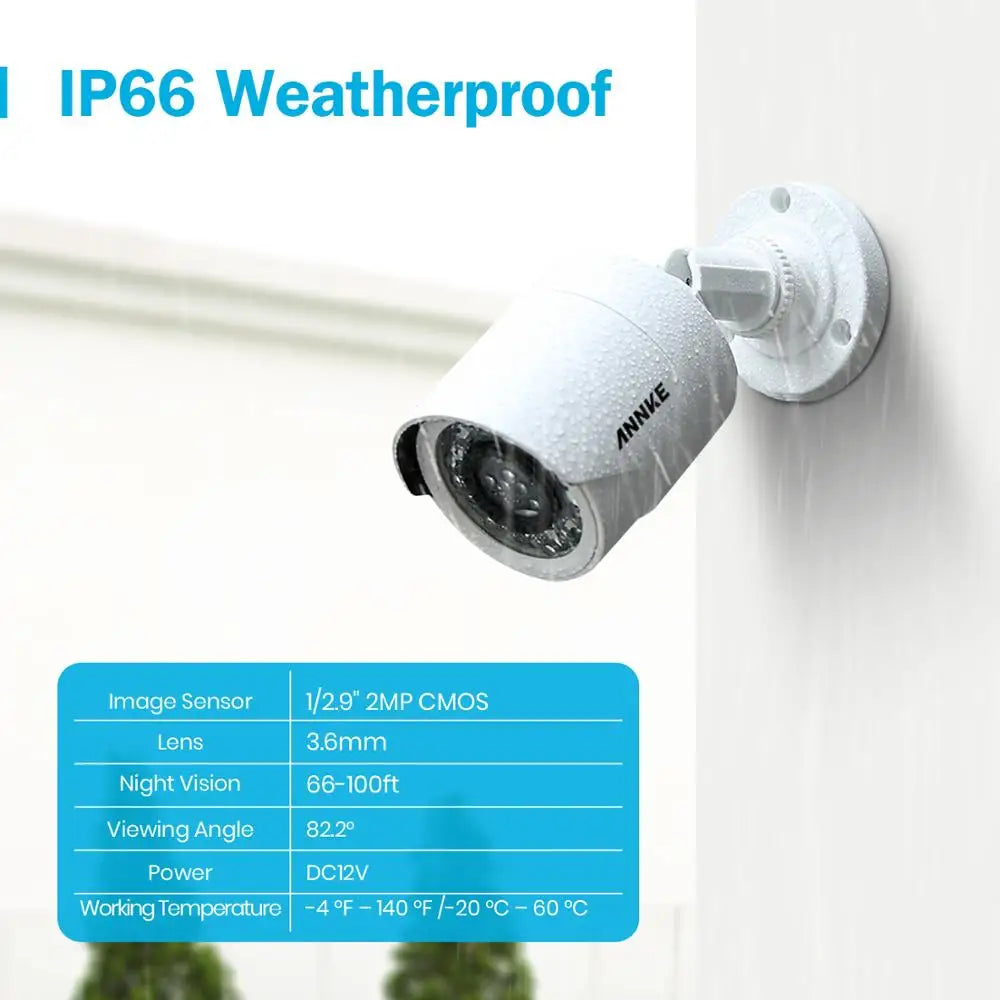

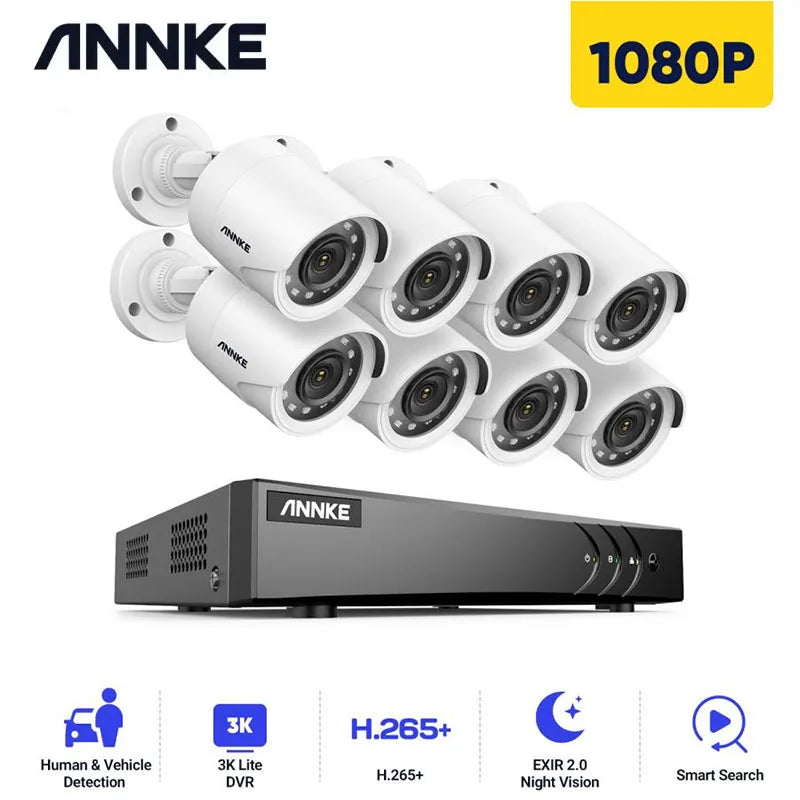

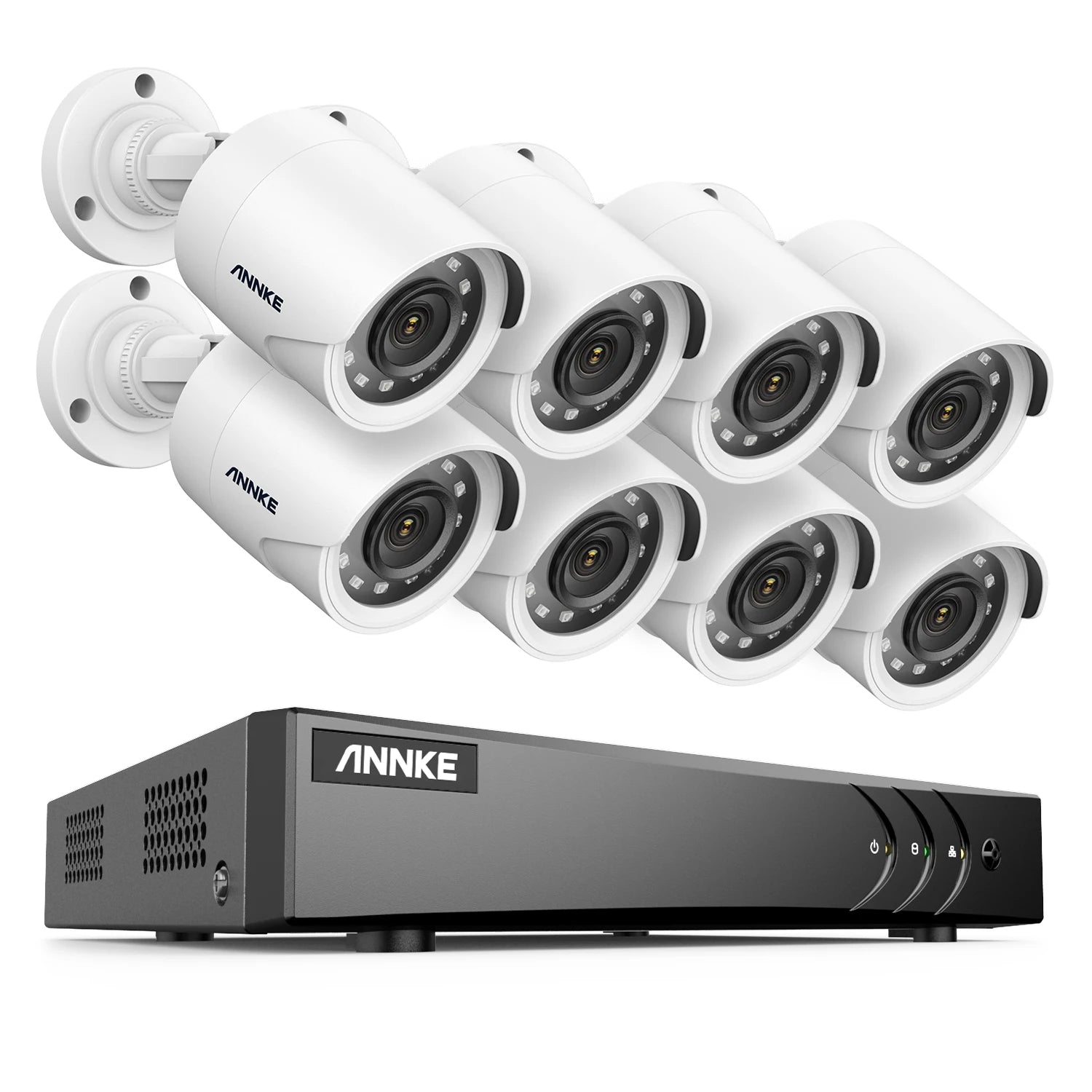

- Includes 8 IP66 waterproof 2.0MP bullet cameras and an 8‑channel DVR to cover the perimeter around your home or small business.
- Advanced H.265 Pro+ compression with up to 3K live viewing and 3K Lite recording for sharper playback while saving storage.

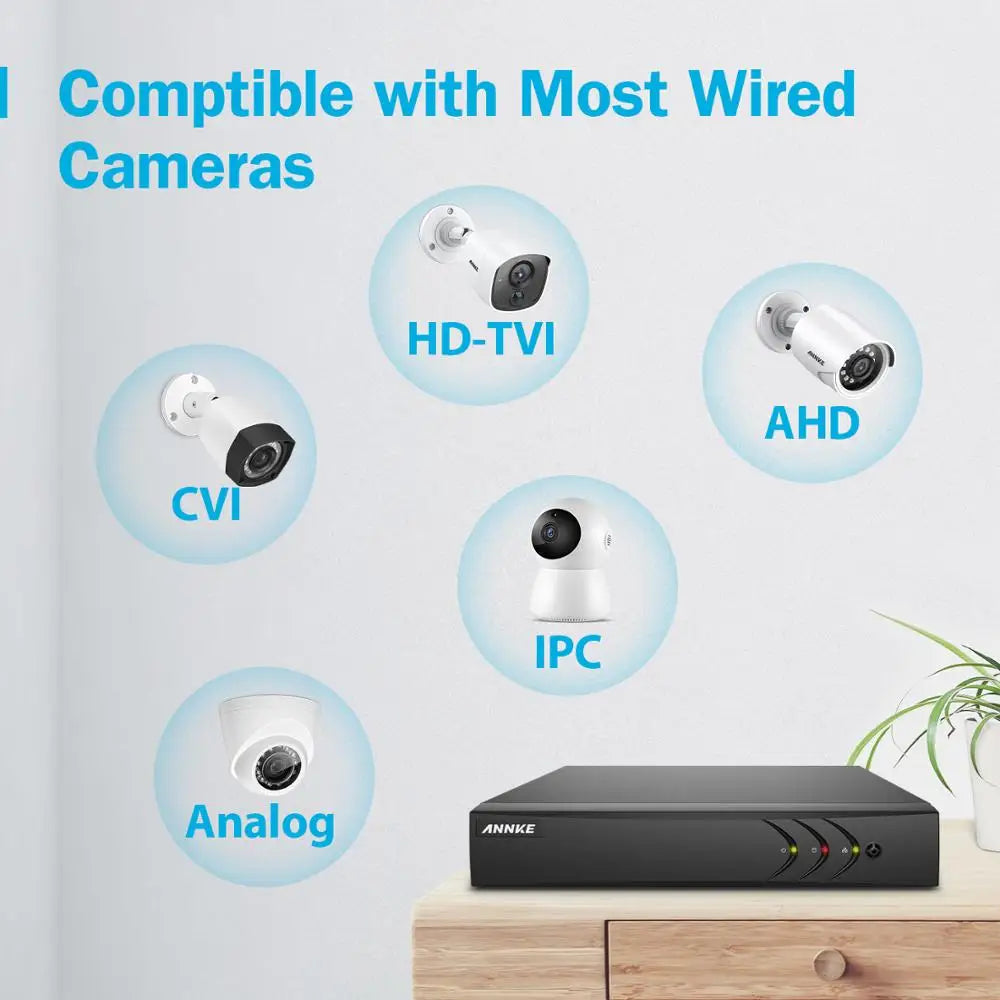

- 5‑in‑1 compatibility (TVI/AHD/CVI/CVBS/IPC) lets you mix legacy cameras with IP options and expand as your needs grow.

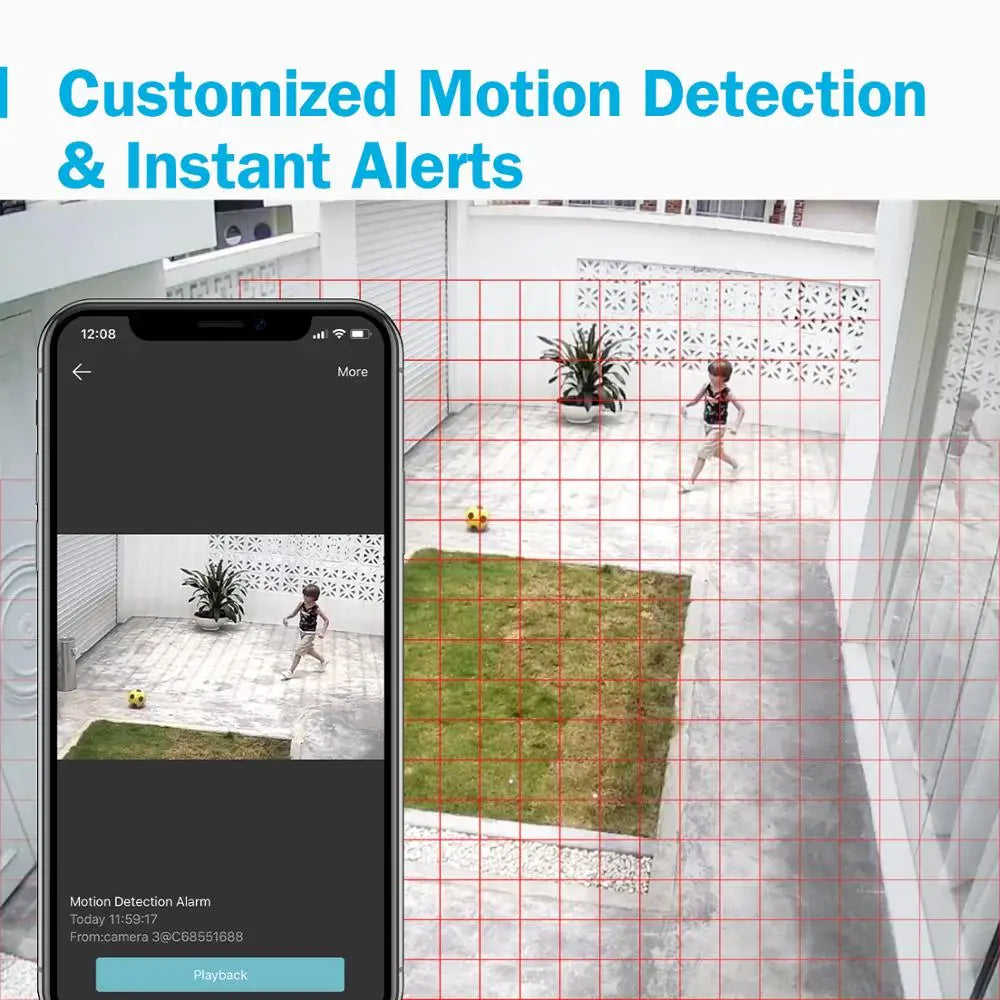

- Smart Motion Detection 2.0 analyzes human and vehicle targets to reduce false alerts and streamline event searches.
Analog HD Camera | ||
Image sensor |
5MP CMOS Image sensor |
|
Camera |
Video Resolution |
2560 (H) × 1944 (V) |
Signal System |
PAL/NTSC |
|
Frame Rate |
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
85.5° |
|
Number of Infra-Red LEDs |
2 |
|
Night Vision Distance |
Up to 100ft/30m |
|
DNR |
2D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
Yes |
|
Video Output |
HD BNC×1 |
|
General |
Housing |
Plastic |
Color |
White |
|
Operating Power |
DC12V |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
2.28” x 2.40” x 6.42” / 58 x 61 x 163mm |
|
Weight |
0.4lbs / Approx. 180g |
|
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265 Pro+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
8-ch |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Total Bandwidth |
96Mbps |
|
Remote Connection |
64 |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
