· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection

★4K turret network camera with 16:9 image scale
★4mm@F1.6 lens brings everything back to life
★Efficient H.265+ compression technology
★Provide real-time security via built-in two-way audio
★Motion detection 2.0 with human & Vehicle Detection
★Smart Dual-Light: advanced technology with long range
★Clear day and night vision with 3D DNR and 120DB WDR
★Support flashing alarm & Audio alarm
★Support on-board storage up to 512 GB (SD card slot)

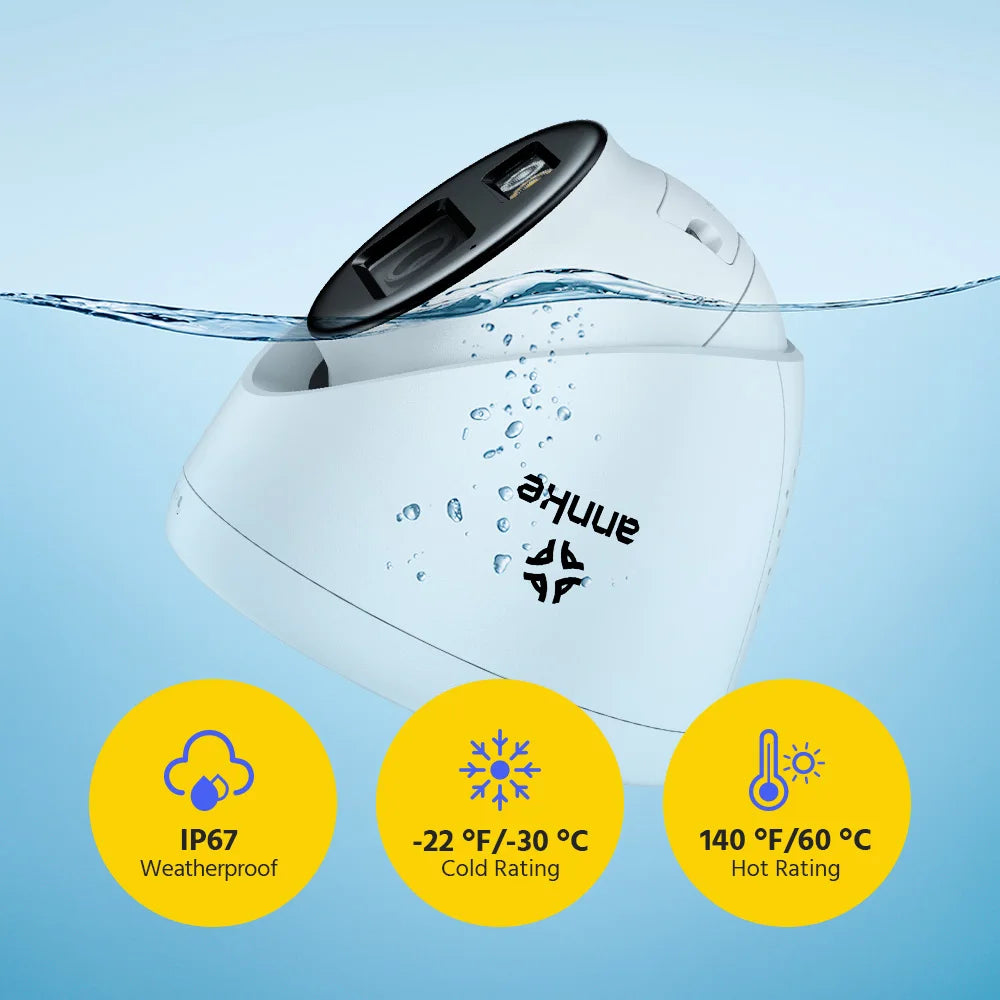

★IP67 Dust and Waterproof Rating
★Support PoE &DC12V

Video & Audio

Decoding Format

H.264+/H.264/H.265/H.265+

IP Video Input

8CH PoE

Video Output

HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080)

Audio Input/Output

1/1 RCA

Incoming/outgoing Bandwidth

80/80 Mbps

Max Recording Resolution

Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)

Max Playback Resolution

Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)

Max Playback Channel

8CH

Max Playback Capacity

1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

Hard Drive

HDD

1 SATA Interface

HDD Capacity

Up to 8 TB Capacity

External Interface

Network Interface

1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at

USB interface

USB 2.0*2

Smart Function

Deep learning

8-ch Human and vehicle targets detection(Need IP camera support)

4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)

General

Operating Power

DC 48 V

Power Consumption

≤10 W (Without HDD and PoE)

PoE: Max 25.5 W for Single Port

Working Temperature

14 °F ~ 131 °F/-10 °C ~+55 °C

Dimensions (W X H X D)

12.4” X 9.4” X 1.9”/315 X 240 X 48 mm

Weight (Without Hard Disk)

2.2 lbs/1 kg

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Max resolution

3840*2160(8MP)

Main Stream

50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Input

Built-in Microphone, record with audio

Audio Output

Built-in Speaker, max. sound pressure level: 10 cm: 95 dB

Lens

4 mm

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

Up to 30 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Flashing Light Alarm

High/Medium/Low Frequency

Audio Alarm

Warning/Prompt/Custom Audio

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API

Open Network Video Interface Version (Profile S, Profile T, Profile G)

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Rotate mode, mirror, password protection, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port
